CNETX-08 Tower and Rack Mount Server | Intel Xeon hybrib-based Custom AI Server
$7,050.00
CNETX-08 customizable tower & rack-mount server delivers high performance with Intel Xeon, 8-channel DDR4, PCIe Gen4 expansion, GPU support and redundant power for enterprise and AI workloads. Chinese brand servers.
CNETX-08 Tower & Rack Server Official Product Overview
The CNETX-08 is a highly customizable Chinese-brand tower and rack convertible server built on the Intel C621A chipset platform, designed for enterprise computing, AI inference, high-performance workloads and small-to-medium data center deployment. It delivers stable computing power, flexible expansion, secure management and reliable hardware architecture to support long-term non-stop operation for business-critical applications.
Powerful Processor & Computing Architecture
CNETX-08 is equipped with the LGA 4189 (Socket P+) socket, supporting 3rd Gen Intel Xeon Scalable processors including Platinum, Gold and Silver series with 10nm process technology and up to 270W TDP. Paired with the Intel C621A Express Chipset, it provides stable and efficient data processing capability for virtualization, database, file storage and high-performance computing tasks.
High-Speed Memory Configuration
This server adopts an 8-channel DDR4 memory architecture with 8 DIMM slots, supporting RDIMM up to 64GB, LRDIMM up to 128GB and 3DS RDIMM/LRDIMM up to 256GB per module. It runs at 3200/2933/2666 MHz with 1.2V low-power design, and is compatible with Intel Optane Persistent Memory 200 series to enhance memory capacity and data access efficiency.
Flexible Storage & RAID Solution

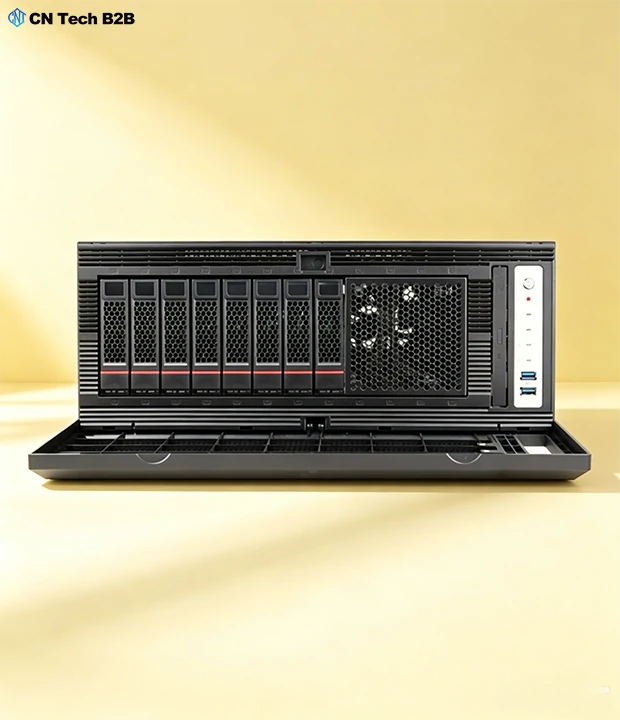

CNETX-08 supports diversified storage options including SATA 6G HDD/SSD, SAS 12G SSD (with optional SAS backplane) and U.2 NVMe SSD (with optional NVMe backplane). It provides 3 SlimSAS ports supporting 12 SATA 6Gb/s channels and 1 M.2 slot (PCIe Gen3 x4, 2280 form factor) for ultra-fast boot and cache storage. Intel SATA RAID 0/1/10/5 is supported to ensure data security and redundancy.
Rich PCIe Gen4 Expansion Capability

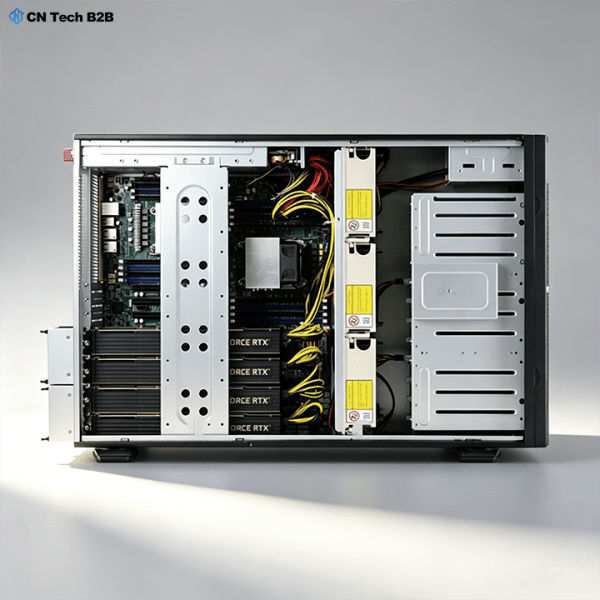

The server offers up to 7 PCIe Gen4 expansion slots, including multiple PCIe x16 slots supporting flexible channel allocation. It is fully compatible with a full range of NVIDIA RTX series graphics cards such as RTX 6000 ada, RTX A6000, RTX A4000 and T1000, making it ideal for AI computing, video rendering, deep learning inference and GPU-accelerated business applications.
Stable Network & Management System
CNETX-08 is configured with 2 Intel I210-AT 1Gb/s LAN ports and 1 dedicated 10/100/1000 management LAN port for stable network transmission and remote O&M. Built with Aspeed AST2600 management controller and AMI MegaRAC SP-X management console, it supports remote monitoring, hardware control and fault diagnosis to simplify server maintenance.
Comprehensive I/O & Security Design

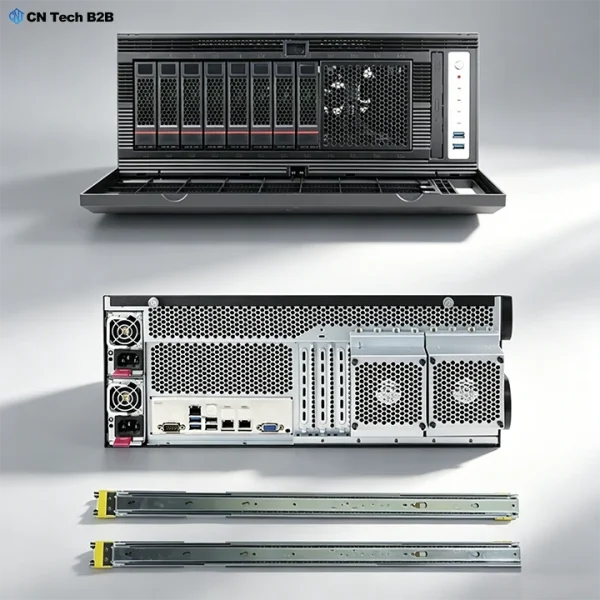

It provides abundant rear I/O interfaces including 4 USB 3.0, 1 VGA, 1 COM, 2 RJ45 data ports and 1 management port. Internal connectors include main power connectors, fan headers, TPM 2.0 header (optional CTM010 kit) and VROC connector to enhance hardware security and expandability. The server supports 1+1 redundant power supply to ensure uninterrupted operation.
Wide System Compatibility
CNETX-08 supports mainstream server operating systems, including Windows Server 2016/2019, RHEL 8.3+, SLES 12 SP5+/15 SP2+, Ubuntu 18.04.5 LTS/20.04 LTS, VMware ESXi 6.7 Update3 P03+/7.0 Update1+ and Citrix Hypervisor 8.2.0+, adapting to diverse enterprise IT environments and virtualization platforms.
Environmental Reliability & Deployment
With an operating temperature range of 10°C–40°C and humidity of 8–80% non-condensing, the server adapts to various office and computer room environments. It adopts ATX dimensions (305W × 254D mm) and supports both tower and rack mounting, enabling flexible deployment for small enterprises, office labs and edge computing scenarios.
Typical Application Scenarios
- Enterprise-level database, file storage and backup server
- AI inference, GPU computing and video rendering workstation
- Small and medium-sized virtualization and cloud computing platform
- Office network server, edge computing and industrial control host
- Customized high-performance computing server for SMBs
CNETX-08 supports 3rd Gen Intel Xeon Scalable CPUs up to 270W TDP and 8-channel DDR4 with 8 DIMM slots to deliver powerful computing for enterprise workloads.
CNETX-08 supports 3rd Gen Intel Xeon Scalable CPUs up to 270W TDP and 8-channel DDR4 with 8 DIMM slots to deliver powerful computing for enterprise workloads.
CNETX-08 supports SATA/SAS/NVMe storage, Intel RAID and M.2 PCIe Gen3 SSD to offer flexible and high-speed data storage solutions for servers.
CNETX-08 adopts redundant 1+1 power supply, Aspeed AST2600 remote management and rich I/O ports to ensure stable 24/7 operation and easy maintenance.
Custom BOM Configuration
| Qty | Models | Product Description |
|---|---|---|
| 1 | CNETX-08 | CNETX-08 Tower&Rack-mount Server |
| 1 | CPU | Intel Xeon Gold 6330 Processor (42M Cache, 2.00 GHz) |
| 4 | RAM | 16GB DDR4 3200MHz ECC RDIMM Memory |
| 1 | GPU | Nvidia RTX 4000 ada 20G |
| 2 | Power Supply | 1200W Power Supply (Supports 1+1 Redundant Hot-Swapping) |
| 1 | Lan | Integrated 2 * 1G RJ45 Ports |
| 1 | Raid | LSI 9361-8i 1G cache (supports raid0,1,5,6) |
| 2 | SSD | Intel DC S4500 Series 3.84TB SATA 6Gb/s 2.5" Enterprise SSD |
| 1 | Warranty | 3-Years |
CNETX-08 Tower & Rack Server Technical Specifications
Official specs of CNETX-08 customizable tower/rack server, supporting 3rd Gen Intel Xeon Scalable CPUs, 8-channel DDR4, PCIe Gen4 expansion, NVIDIA GPU, redundant power and enterprise remote management.
| Specification Item | Official Technical Details |
|---|---|
| Product Model | CNETX-08 Tower & Rack Convertible Server |
| Form Factor & Dimensions | 650mm x 437.5 x 176.5 |
| CPU Platform | 3rd Gen Intel Xeon Scalable Processors (Platinum/Gold/Silver) |
| CPU Socket & TDP | 1 × LGA 4189 (Socket P+); Max TDP 270W; 10nm process |
| Chipset | Intel C621A Express Chipset |
| Memory Architecture | 8-channel DDR4; 8 × DIMM slots; 1.2V low power |
| Memory Type & Speed | RDIMM (up to 64GB), LRDIMM (up to 128GB), 3DS RDIMM/LRDIMM (up to 256GB); 3200/2933/2666 MHz |
| Persistent Memory Support | Intel Optane Persistent Memory 200 series |
| Storage Interfaces | SATA 6Gbps HDD/SSD; SAS 12Gbps SSD (optional SAS backplane); U.2 NVMe SSD (optional NVMe backplane) |
| RAID Support | Intel SATA RAID 0/1/10/5 |
| M.2 Slot | 1 × M-key, PCIe Gen3 x4; supports NGFF-2280 SSD |
| SlimSAS Ports | 3 × SlimSAS (supports 12 × SATA 6Gb/s channels) |
| GPU Support | NVIDIA RTX 6000 ada/5000 ada/4000 ada, A6000/A5000/A4000/A2000/A1000, T1000 |
| Expansion Slots | Up to 7 × PCIe Gen4 x16 slots (flexible channel allocation); 1 × M.2 slot |
| LAN Ports | 2 × 1Gb/s Ethernet (Intel I210-AT); 1 × 10/100/1000Mbps dedicated management LAN |
| Video Controller | Aspeed AST2600 2D Video Adapter; max resolution 1920×1200@60Hz 32bpp |
| Rear I/O Ports | 4 × USB 3.0, 1 × VGA, 1 × COM, 2 × RJ45, 1 × MLAN, 1 × ID button with LED |
| Internal I/O Connectors | 24-pin/8-pin/6-pin power, 2 × SlimSAS, 1 × M.2, CPU/system fan headers, USB 3.0, TPM, VROC, front panel, buzzer |
| Power Supply | Supports 1+1 Redundant Power Supply; standard ATX power connectors |
| Security Module | 1 × TPM header (SPI interface); optional TPM2.0 kit (CTM010) |
| Remote Management | Aspeed AST2600 management controller; |
| Operating Systems | Windows Server 2016/2019; RHEL 8.3+; SLES 12 SP5+/15 SP2+; Ubuntu 18.04.5/20.04 LTS; VMware ESXi 6.7U3+/7.0U1+; Citrix Hypervisor 8.2.0+ |
| Operating Environment | Temperature: 10°C ~ 40°C; Humidity: 8% ~ 80% (non-condensing) |
| Non-Operating Environment | Temperature: -40°C ~ 60°C; Humidity: 20% ~ 95% (non-condensing) |
| Package Content | Server host, instruction manual, rack rails. |
| Typical Applications | Enterprise computing, AI inference, GPU rendering, virtualization, database, file storage, edge computing |
