1. Processor & Intel C262 Chipset Architecture

1.1 Multi-Grade Processor Options

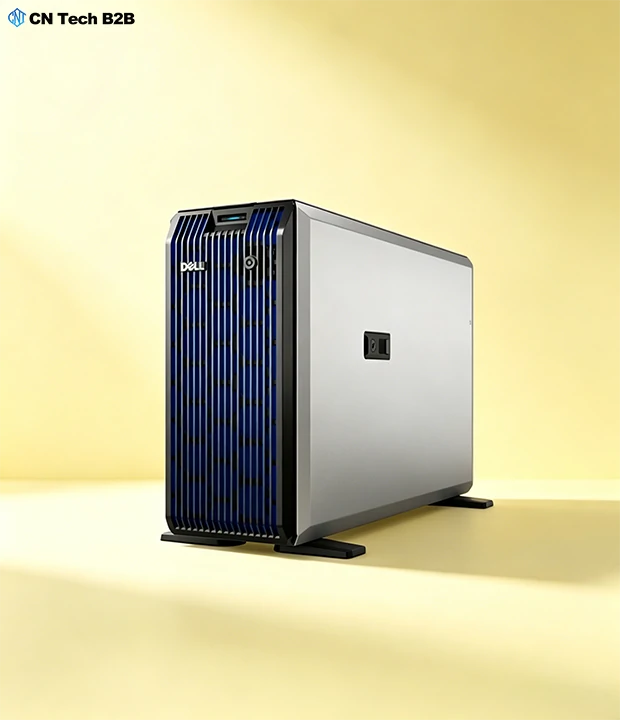

The PowerEdge T360 adopts a single-processor design with two official CPU configurations to match diversified budget and performance demands. The primary option is the Intel Xeon E-2400 series processor, featuring up to 8 cores, maximum 95W TDP, and optimized for multi-task computing, database and virtualization workloads. For entry-level office scenarios, users can select the Intel Pentium G7400/G7400T dual-core processor with 46W low TDP, delivering sufficient performance for file sharing and print server services. Both processors work with the Intel C262 chipset to unlock full PCIe lane resources.

1.2 PCIe Lane Resource Allocation

Powered by the Intel C262 chipset, the system provides 16 PCIe 5.0 lanes (32GT/s transfer rate) and 4 PCIe 4.0 lanes (16GT/s transfer rate). The high-speed PCIe architecture guarantees sufficient bandwidth for high-performance network adapters, RAID controllers and entry-level GPU accelerators, eliminating I/O bottlenecks for data-intensive tasks.

2. DDR5 ECC Memory Subsystem

2.1 Memory Hardware Specifications

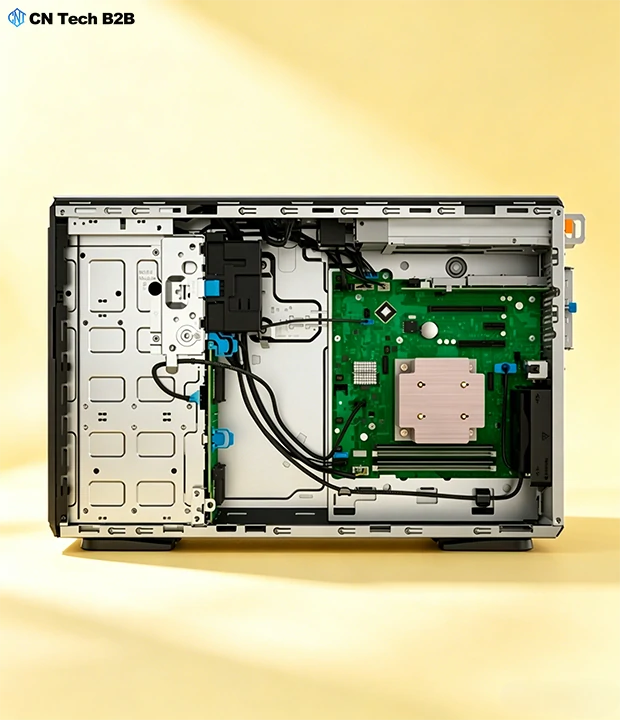

Equipped with 4 dedicated DDR5 UDIMM slots, the Dell T360 only supports unregistered ECC DDR5 memory modules. Each slot accepts a maximum 32GB DIMM, bringing the total system memory capacity up to 128GB with a rated operating speed of 4400 MT/s. DDR5 architecture improves memory bandwidth and power efficiency compared with traditional DDR4, accelerating data read-write for business applications and virtual machines.

2.2 Memory Reliability Mechanism

Built-in ECC (Error-Correcting Code) technology automatically detects and corrects single-bit memory errors, preventing system crashes or data corruption caused by memory anomalies during long-term 24/7 operation. This enterprise-grade memory protection is critical for stable running of business-critical systems such as ERP and email servers.

3. Multi-Mode Hot-Plug Storage Solutions

3.1 Front Drive Bay Configurations

The tower chassis offers two mainstream front drive bay layouts for flexible storage expansion:

• 4 x 3.5-inch hot-plug SATA drive bays: Maximum total storage up to 64TB
• 8 x 3.5-inch hot-plug SAS/SATA drive bays: Maximum total storage up to 128TB
• Compatible with 2.5-inch HDD/SSD via dedicated adapter, maximum capacity up to 61.44TB

All hard drive bays support hot-plug, allowing drive replacement without shutting down the entire server.

3.2 RAID Controller Series

Multiple official RAID and HBA controllers are optional to meet different data redundancy and access demands, including PERC H355, PERC H755 hardware RAID adapters, HBA355e external HBA card and S160 software RAID. These controllers support mainstream RAID levels (RAID 0/1/5/10), protecting business data from hard drive failure risks.

3.3 BOSS-N1 Boot Optimized Storage Subsystem

The optional BOSS-N1 subsystem integrates dual M.2 NVMe SSDs specially for system booting. It operates independently of mainstream hard drive bays, delivering ultra-low boot latency and high reliability. The dual M.2 design provides redundant protection for the operating system partition, avoiding system boot failure caused by a single boot drive fault.

4. I/O Interfaces & PCIe Expansion Slots

4.1 Front & Rear Standard I/O Ports

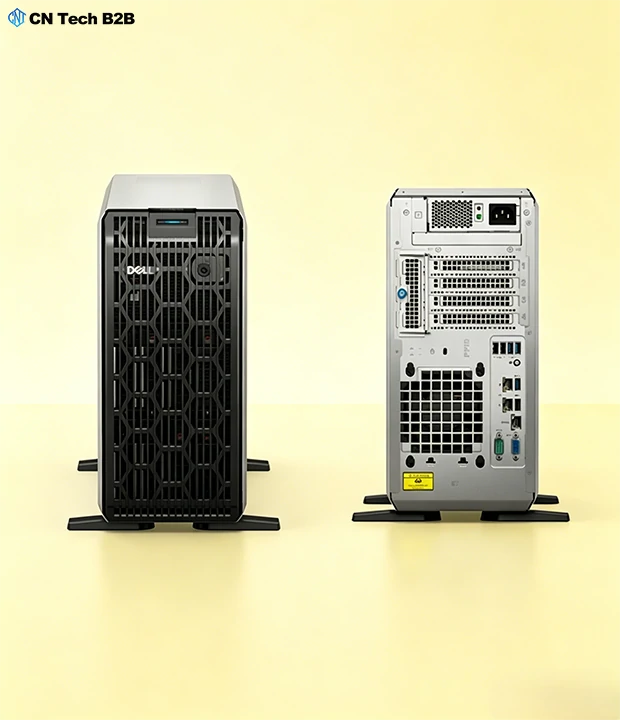

The T360 reserves abundant built-in ports for daily connection and debugging:

• Front: 1 x Micro-AB USB port for iDRAC Direct, 1 x USB 3.2 Gen1 port for quick data access

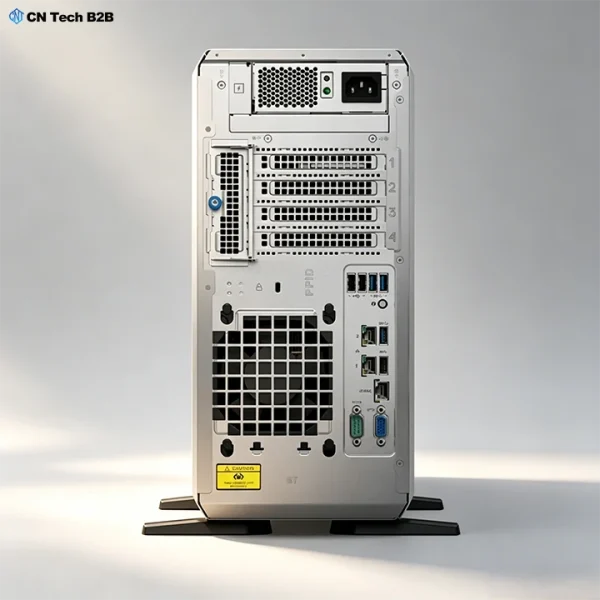

• Rear: 2 x integrated 1GbE LOM network ports, 1 x VGA port, 1 x serial port, multiple USB 3.2 ports

The dual onboard Gigabit Ethernet ports satisfy basic network access for multi-terminal office environments.

4.2 PCIe Gen 5 & Gen 4 Expansion Slots

The server is equipped with 4 physical PCIe expansion slots, including 1 PCIe Gen 5 slot and 3 PCIe Gen 4 slots. Users can install upgraded 10GbE network cards, external storage HBA cards or low-profile accelerators. It officially supports the NVIDIA A2 GPU, which enhances performance for video encoding, VDI desktop and lightweight edge AI inference workloads.

5. Power Supply & Energy Efficiency Design

5.1 Multiple PSU Specifications

Dell provides three power supply options for different high-availability requirements:

• 450W Platinum non-redundant power supply: 100-240V AC, cost-effective for non-critical workloads
• 600W Platinum hot-swappable redundant PSU: Supports AC/DC dual input for core business scenarios
• 700W Titanium hot-swappable redundant PSU: Highest energy efficiency, 200-240V AC input

5.2 Redundancy & Energy-Saving Standards

600W and 700W PSUs support hot-swap and 1+1 redundancy. When one power unit fails, the other takes over automatically to ensure non-stop business operation. All power modules comply with international energy efficiency standards, reducing long-term power consumption for enterprise IT rooms and office server closets.

6. Thermal & Acoustic Optimization for Office Use

6.1 Intelligent Air Cooling System

Adopting a full air-cooling solution with standard and high-performance optional fans, the T360 builds a directional airflow channel inside the chassis. The intelligent fan speed adjustment mechanism dynamically changes fan speed according to CPU, memory and storage temperature, balancing heat dissipation efficiency and noise control. No complex liquid cooling is required, lowering maintenance difficulty.

6.2 Low-Noise Design for Shared Spaces

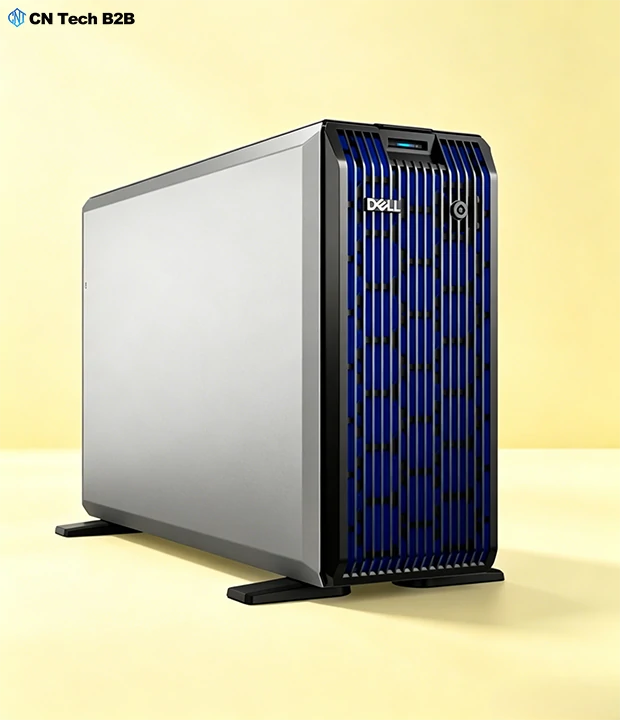

Optimized fan structure and chassis sound insulation design effectively reduce operating noise. The low acoustic performance makes the T360 perfectly suitable for deployment in open offices, small server rooms and branch workspaces, without interfering with daily office work.

7. Enterprise-Grade Full-Lifecycle Security Architecture

7.1 TPM 2.0 Hardware Root of Trust

The onboard TPM 2.0 (Trusted Platform Module) chip provides hardware-level encryption and identity verification. It stores system keys and sensitive credentials locally, resisting external tampering and malicious attacks, and lays the foundation for enterprises to build a Zero Trust security system.

7.2 Firmware & Data Protection

Supporting UEFI Secure Boot and signed firmware verification, the server blocks unauthorized firmware and malicious programs from loading during startup. It also integrates BIOS recovery, system dynamic lockdown and hard drive encryption functions, realizing full protection from firmware layer to data layer. Combined with access permission control, it prevents illegal access to internal business data.

8. Dell Intelligent Server Management Ecosystem

8.1 Integrated iDRAC9 Out-of-Band Management

The embedded iDRAC9 (Integrated Dell Remote Access Controller) is the core management module of the T360. It supports independent remote access regardless of the server OS status, enabling remote power on/off, hardware status monitoring, fault diagnosis and virtual console operation. Equipped with iDRAC Direct and Redfish RESTful API, it supports automated secondary development and third-party platform docking.

8.2 OpenManage Suite & Automated O&M

Compatible with the complete Dell OpenManage ecosystem, including OpenManage Enterprise, OpenManage Mobile and CloudIQ. These tools support batch device discovery, unified monitoring, firmware batch update and fault alert. The zero-touch deployment function realizes automatic system installation and configuration for multiple servers, greatly reducing manual O&M workload for IT teams. It also integrates plugins for VMware vCenter, Microsoft System Center and ServiceNow for seamless docking with mainstream enterprise management platforms.

9. Operating System & Virtualization Platform Compatibility

9.1 Supported Server Operating Systems

The PowerEdge T360 has passed official certification for mainstream server operating systems: Microsoft Windows Server (with Hyper-V), Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server and Canonical Ubuntu Server LTS. It covers commercial and open-source OS to adapt to different enterprise IT architectures.

9.2 Certified Virtualization Platforms

Fully compatible with VMware ESXi hypervisor, it is optimized for virtual machine scheduling and resource allocation. Small and medium enterprises can deploy multiple virtual machines on a single T360 to integrate file services, database and application services, maximizing hardware utilization and reducing IT procurement costs.

10. Hardware Reliability & Operating Environment

10.1 Hot-Swappable Core Components

Besides hot-plug hard drives, the redundant power supply modules also support hot swap. In case of single PSU failure, field maintenance can be completed without shutting down the server, ensuring continuous operation of key business services.

10.2 Environmental Adaptation

Designed for standard indoor server room and office environments, the tower server maintains stable operation under conventional temperature and humidity conditions. The robust hardware structure resists daily vibration and electromagnetic interference, suitable for long-term continuous operation in remote branch offices and edge sites without professional data center protection.

11. Target Industry & Workload Deployment Scenarios

As a versatile tower server, the Dell PowerEdge T360 is widely deployed across multiple industries:

• SMB Core IT: File server, email server, ERP and OA system for small and medium enterprises
• Remote Branches: Unified access and data storage for retail chains, manufacturing branch offices
• Edge Computing: Edge gateway, data collection and lightweight AI inference for logistics and industrial sites
• Video & Monitoring: Video stream decoding, centralized storage for campus and enterprise surveillance systems
• Virtual Desktop (VDI): Entry-level VDI host for small teams to realize desktop cloud office
