1. Processor Platform & Performance Optimization

1.1 14th Gen Intel Core Processor Portfolio

The Dell Precision 3680 fully supports the complete lineup of 14th Gen Intel Core processors, ranging from entry-level Intel Core i3 to high-end Intel Core i9 models. There are two power consumption versions for selection: 65W standard power and 125W high-performance. The 125W CPU supports unlimited turbo duration, maintaining high clock speed under continuous full load, which greatly improves the operating efficiency of single-threaded professional applications such as CAD drawing and script compiling. The top-tier Intel Core i9-14900 series owns up to 24 cores and a maximum turbo frequency of 6.0 GHz, delivering extreme computing power for complex 3D rendering and large-scale simulation tasks.

1.2 Performance Tuning & Intel vPro Support

This workstation retains Intel vPro platform options for enterprise-level remote hardware management, hardware isolation and security monitoring. Combined with Dell's underlying performance tuning strategy, it dynamically allocates computing resources according to different workload types, avoiding performance waste caused by resource imbalance. Whether running lightweight office design software or heavy-duty rendering programs, the system can maintain optimal operating status.

2. DDR5 Memory System & Reliability Technology

2.1 Memory Hardware Specifications

Equipped with high-speed DDR5 memory architecture, the Precision 3680 runs at a standard frequency of 4400 MT/s, far exceeding the bandwidth of traditional DDR4 memory. The system supports a maximum memory capacity of 128 GB, meeting the memory demands of multi-layer 3D models, multi-track video editing and virtual machine clusters. Users can configure non-ECC memory for cost-effective deployment or optional ECC memory for mission-critical industrial design and data simulation scenarios.

2.2 Reliable Memory Technology Pro (RMT Pro)

Integrated Dell exclusive RMT Pro memory protection technology, which can automatically detect, mark and isolate faulty memory particles in real time. It also sends early warning reminders when memory approaches the service life limit, effectively preventing system crashes, data loss and program errors caused by memory failure during long-term operation. This enterprise-grade memory protection mechanism ensures stable operation for 7×24 professional workloads.

3. Multi-Tier Expandable Storage Architecture

3.1 Mixed Storage Combination

The workstation adopts a hybrid storage design combining M.2 NVMe SSD and traditional SATA hard drives, supporting a maximum total storage capacity of 28 TB. It is configured with multiple M.2 PCIe Gen4 slots, compatible with M.2 2230 and 2280 specification solid-state drives, which are used for system installation and frequent access project files to achieve ultra-low access latency. Meanwhile, multiple 2.5-inch and 3.5-inch SATA drive bays are reserved for storing large-volume raw materials, rendered videos and historical project data.

3.2 Advanced Storage Features

It supports Self-Encrypting Drive (SED) technology to realize hardware-level encryption of stored data and prevent confidential design drawings and video materials from being leaked. In addition, optional optical drive modules including 8x DVD-ROM and 8x DVD+/-RW are provided for offline data archiving and file reading. The whole storage system supports flexible RAID configuration to improve data redundancy and disaster recovery capability.

4. Professional Graphics & Comprehensive ISV Certifications

4.1 Professional Graphics Card Compatibility

The Dell Precision 3680 supports a full range of NVIDIA and AMD professional graphics cards, with a maximum power limit of 450 W and dual-graphics card deployment options. The compatible models cover entry-level NVIDIA T400, T1000, mid-range RTX A1000, RTX 4000 Ada, and high-end RTX 5000/6000 Ada series, as well as AMD professional graphics products. Integrated Intel UHD Graphics 730/770 is available for users with basic graphic office needs, balancing cost and performance. All graphics solutions are optimized for graphic computing, video encoding and AI inference workloads.

4.2 Authoritative ISV Certification System

As a standard Precision workstation, it has passed strict ISV certification from global mainstream software vendors, including Autodesk, SolidWorks, Adobe, Siemens and other well-known brands. The certified software covers 2D/3D CAD design, industrial simulation, post-production video editing, special effects production and other fields. ISV optimization ensures that professional software can give full play to hardware performance, avoid compatibility failures, crashes and frame drops during creation and production.

5. Rich I/O Ports & PCIe Expansion Slots

5.1 Front & Rear Full-Featured Ports

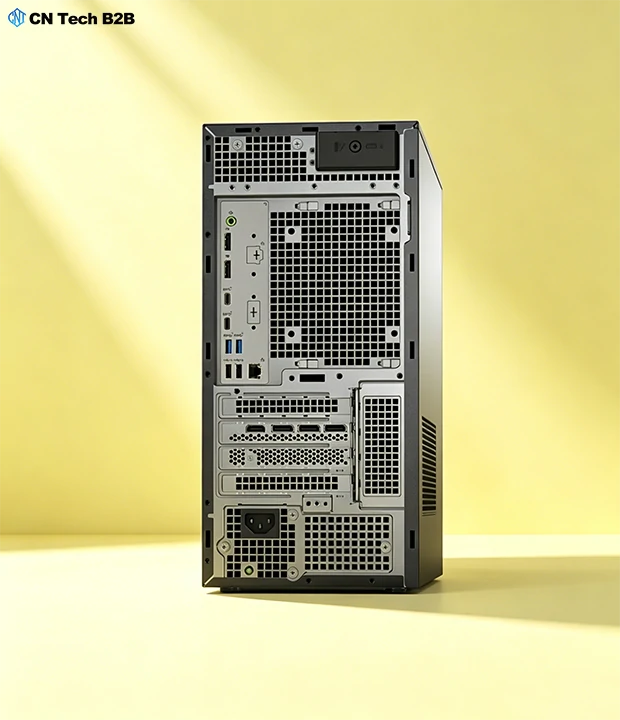

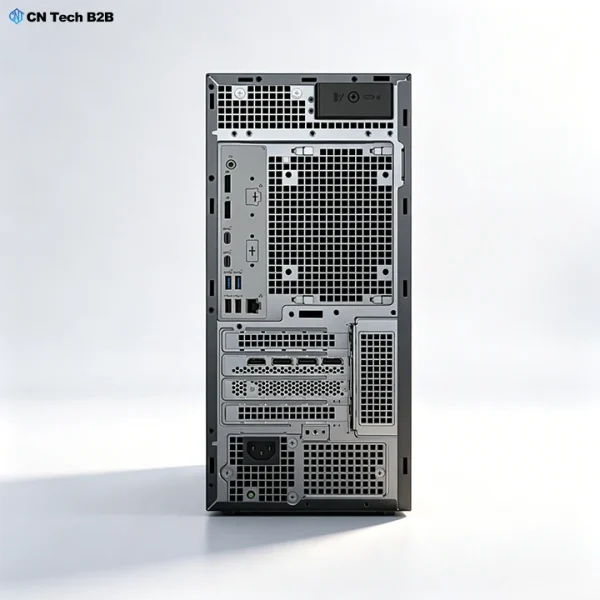

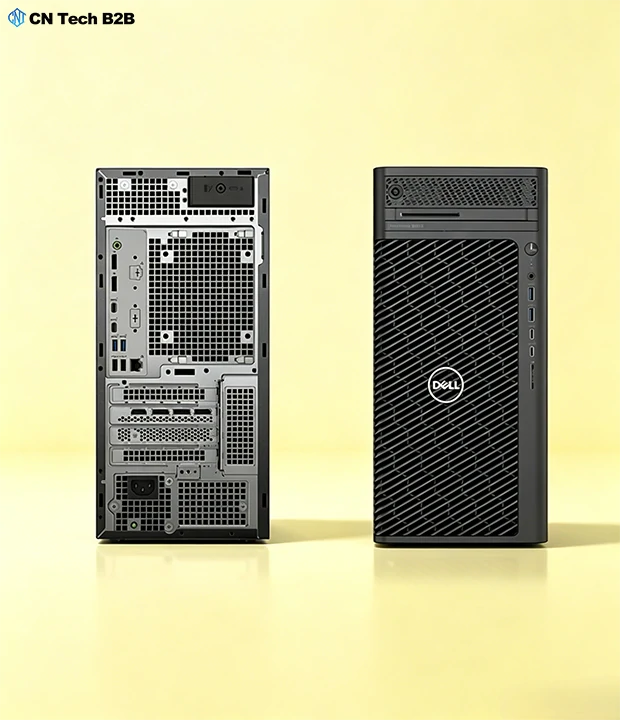

The front panel is equipped with multiple USB 3.2 Gen1/Gen2 and high-speed USB 3.2 Gen2x2 Type-C ports with PowerShare function, as well as universal audio interfaces, which are convenient for frequent plug-and-play of mobile hard drives, U disks and audio devices. The rear part provides 2 x DisplayPort 1.4a video outputs, supporting 4K and 8K ultra-high-definition display signals. It also has dual RJ45 Ethernet options: standard 1 GbE and optional 2.5 GbE, plus multiple USB 2.0/3.2 ports and configurable expansion ports such as HDMI and VGA.

5.2 High-Speed PCIe Expansion & Wireless Module

The built-in expansion slots include 1 x PCIe Gen5 x16 full-height slot, 1 x PCIe Gen3 x4 slot and 1 x PCIe Gen4 x4 slot, which can be used to expand high-speed network cards, frame grabbers and professional acceleration cards. An independent M.2 slot is reserved for WiFi 6/6E and Bluetooth 5.3 wireless modules, realizing stable wireless network and short-distance device connection without occupying conventional storage slots.

6. Power Supply & Advanced Thermal Design

6.1 High-Efficiency Platinum Power Supply

Multiple 80 Plus Platinum certified power supply units are optional for the workstation, including 300W, 500W and 1000W specifications. High energy conversion efficiency reduces long-term power consumption and operating costs. Different power gears correspond to different hardware configurations: low-power PSU for basic office configurations, and high-power PSU for dual graphics cards and full-load expansion schemes, ensuring stable power output under complex working conditions.

6.2 Low-Noise Heat Dissipation Solution

Adopting premium CPU air cooler with VR heatsink and enhanced side panel ventilation structure, the whole heat dissipation system forms a directional air duct inside the chassis. The fan speed is intelligently adjusted according to the temperature of CPU, graphics card and memory. While ensuring efficient heat dissipation during long rendering and computing, it effectively reduces operating noise, creating a quiet working environment for design studios and open offices.

7. Enterprise-Grade Comprehensive Security

7.1 Physical Anti-Theft Protection

The chassis supports lockable design and chassis intrusion detection function. The detachable front storage bay can also be locked to prevent unauthorized disassembly and theft of hard drives and internal components. Optional integrated smart card reader supports CAC/PIV card authentication, which is suitable for government, military and confidential enterprise scenarios with high access control requirements.

7.2 System & Data Security

Equipped with TPM 2.0 security chip, it realizes hardware-level system encryption and boot protection, resisting malware and ransomware attacks. Combined with SED self-encrypting storage and RMT Pro memory protection, it builds a full-link security system from system boot, memory operation to data storage, fully protecting confidential design files and business data.

8. Operating System & Software Ecosystem

8.1 Supported Operating Systems

The Dell Precision 3680 is pre-installed or compatible with multiple mainstream operating systems. Dell recommends Windows 11 Pro for business users, and it also supports Windows 11 Home, Windows 11 Pro for Workstations and other Windows versions. For open-source users, it officially certifies Ubuntu 22.04 LTS Linux system, meeting the deployment needs of cross-platform development and industrial control applications.

8.2 Dell Exclusive Management Software

Preloaded Dell Optimizer intelligent management software can automatically optimize system performance, audio and display effects according to user habits and application scenarios. Cooperated with Dell remote management tools, it realizes remote firmware upgrade, hardware status monitoring and fault diagnosis, simplifying the daily operation and maintenance work of IT administrators for large-scale workstation fleets.

9. Tool-Less Chassis & Maintenance Design

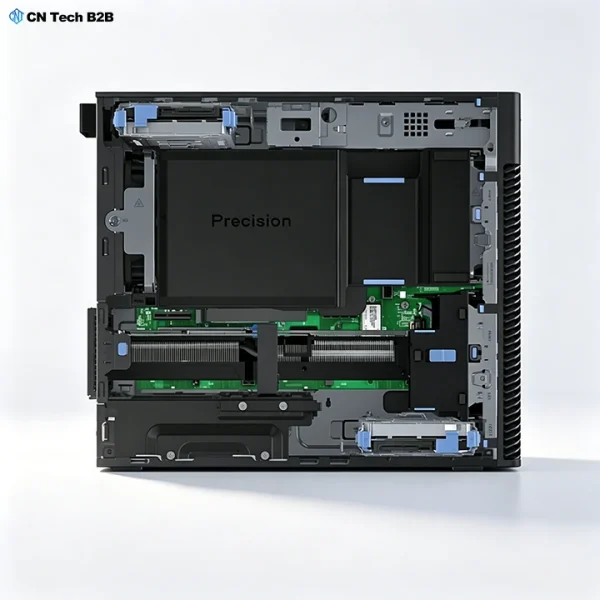

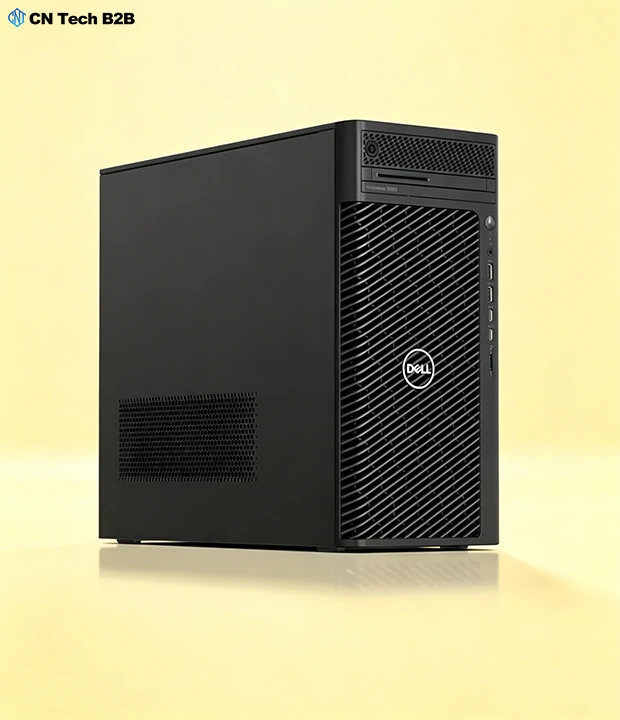

The whole tower chassis adopts a tool-less disassembly design. Users can quickly access internal memory, hard drives, graphics cards and other components without screwdrivers, greatly reducing the difficulty of hardware upgrading, replacement and daily maintenance. The compact tower form factor does not occupy much space, and can be placed under the desk, in equipment cabinets or small workstation areas, adapting to various office and production space layouts.

10. Target Application Scenarios

• Mechanical & Architectural Design: Run CAD, SolidWorks and other 2D/3D design software for mechanical drawing, architectural modeling and industrial simulation.
• Video & Media Production: Complete multi-track video editing, color grading, special effects production and 4K/8K video rendering.
• Industrial Simulation & AI Computing: Cooperate with professional graphics cards to carry out lightweight AI inference and industrial data simulation tasks.
• Enterprise Office & Development: Serve as high-performance office equipment and program development host for design departments and R&D teams.
• Government & Confidential Units: Apply to confidential design and office scenarios with multi-dimensional security protection functions.
