H3C IE4500‑G Series | Industrial Gigabit Network Switche for High‑Temp Harsh Environments
Price range: $1,333.00 through $1,980.00
H3C IE4500‑G is a rugged industrial gigabit switch designed for harsh environments, supporting wide operating temperature, fanless cooling, redundant power, and rich management features. It delivers stable and reliable network performance for industrial automation, smart cities, and outdoor applications.
H3C IE4500‑G Series Rackmount Industrial Ethernet Switches
The H3C IE4500‑G Series is a lineup of rugged Layer 3 rackmount industrial Ethernet switches engineered for high‑performance, high‑reliability networking in extreme temperatures, high humidity, electrical interference, and harsh industrial environments. Built on H3C’s Comware software platform and industrial‑grade hardware, these switches deliver stable 24/7 operation, strong surge protection, and wide‑temperature resilience for manufacturing, rail transit, smart cities, power utilities, and outdoor industrial sites.
Built for Extreme High‑Temperature & Harsh Industrial Environments
Every model in the IE4500‑G Series uses industrial‑grade components and a fanless natural cooling design with advanced heatsinks and thermal conductive materials. The PCB features a three‑proof coating to resist dust, moisture, and corrosion. Supporting an ultra‑wide operating temperature range from -40°C up to 85°C and IP40 ingress protection, these switches maintain full performance in enclosed cabinets, high‑heat workshops, and outdoor deployments where commercial switches cannot survive.
High Port Density & 10G Uplink for Industrial Backbone Networks
The IE4500‑G Series offers versatile port configurations to match industrial networking demands, including 24× Gigabit RJ45 ports, 24× SFP fiber ports, and 4× 10G SFP+ uplink ports for high‑speed aggregation. With a switching capacity of 560Gbps and 196Mpps forwarding rate, the series supports large‑scale data transmission, video surveillance, PLC control, and real‑time industrial communication without congestion or packet loss.
IRF2 Intelligent Resilient Framework for High Reliability
Supporting IRF2 (Intelligent Resilient Framework) technology, up to four physical switches can be virtualized into a single logical device. This simplifies management, improves scalability, and provides 1:N device‑level redundancy. Combined with ERPS, RRPP, and MRP ring protocols, the network achieves self‑healing within 10ms–20ms to ensure uninterrupted industrial services.
Comprehensive Industrial Security & Access Control
The IE4500‑G Series provides multi‑layer security to protect critical industrial networks. Features include 802.1X authentication, MAC authentication, ACL filtering, dynamic IP/MAC/Port binding, ARP anti‑attack, and DDoS defense. With TPM‑level security integration and EAD endpoint admission control, the switches block unauthorized access and isolate threats to maintain stable and secure operations.
Rich Industrial Protocols & Field Compatibility
Designed for true industrial interoperability, the switches support transparent transmission and monitoring for Profinet, Ethernet/IP, Modbus, and CC‑Link protocols. They integrate seamlessly with PLCs, frequency converters, and IO devices from mainstream vendors, unifying control and communication networks for smart factory automation.
Dual Redundant Power & Alarm for Uninterrupted Operation
IE4500‑G switches support dual redundant power inputs including AC220V, DC110V, DC220V, and wide‑range DC24–48V. Power failure and temperature alarms send real‑time alerts via relay contacts. The system also supports dual boot firmware backup to avoid boot failures and ensure maximum uptime in mission‑critical industrial environments.
Easy Management & SDN/OpenFlow Support
Administrators can manage the switches via CLI, Web GUI, Telnet, SSH2.0, or SNMPv3. The series supports H3C iMC and SmartMC for centralized visualization, batch configuration, and fault monitoring. OpenFlow 1.3 and SDN compatibility enable flexible traffic scheduling and automated deployment for modern industrial networks.
Ideal Applications for High‑Temp & Harsh Industrial Scenarios
- High‑temperature factory automation and production lines
- Outdoor cabinets, smart cities, and roadside surveillance
- Rail transit, tunnel communication, and transportation systems
- Power substations, energy, and mining industrial networks
- Harsh environments with dust, moisture, and electromagnetic interference

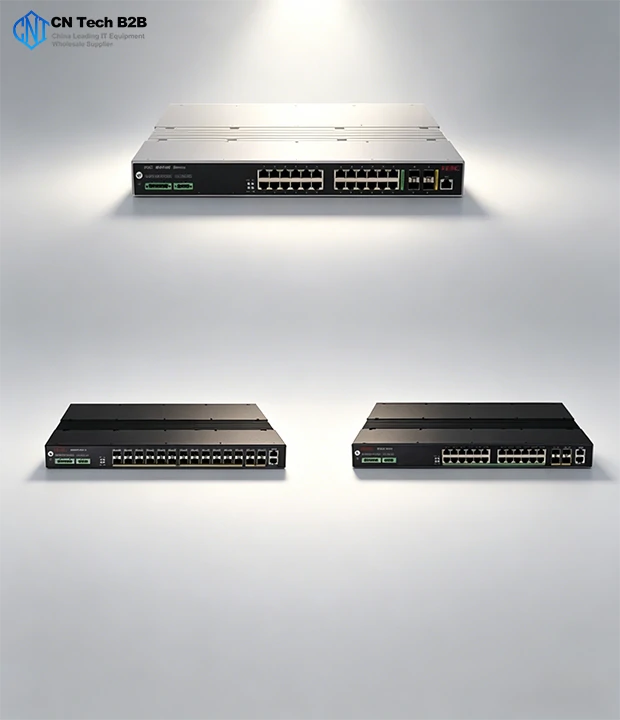

The complete H3C IE4500-G industrial gigabit switch family offers multiple flexible port configurations, purpose-built to deliver rock-solid 24/7 network stability in extreme high-temperature, dusty, and electrically noisy complex industrial field environments.

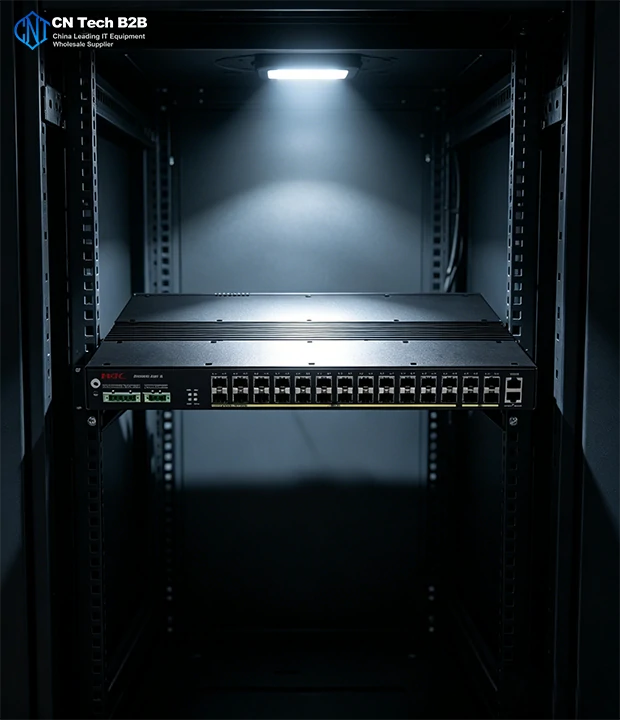

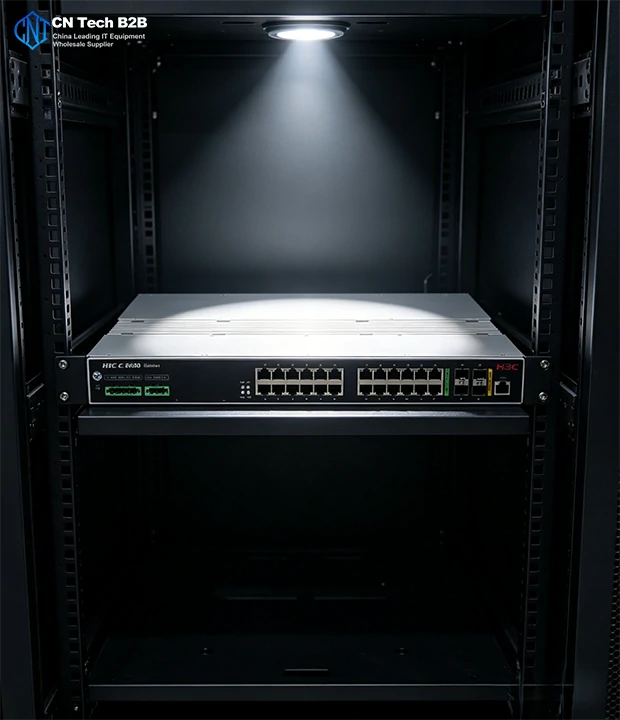

This rack-mounted H3C IE4500-G hardened industrial switch features fanless silent cooling and excellent thermal design, maintaining consistent peak performance even in poorly ventilated, high-heat confined industrial cabinet spaces.
Engineered with full industrial-grade surge protection, wide voltage input, and anti-vibration chassis construction, the H3C IE4500-G runs reliably under harsh mechanical interference and fluctuating industrial site conditions.
The high-density port H3C IE4500-G industrial managed switch supports 10G uplink and advanced ring redundancy protocols, ensuring ultra-low latency and uninterrupted mission-critical network operation for factory automation and outdoor edge infrastructure.
Custom Demo BOM Configuration
| BOM Code | PID | Description | Qty |
|---|---|---|---|
| H3C IE4500-24T4X-G #1 | |||

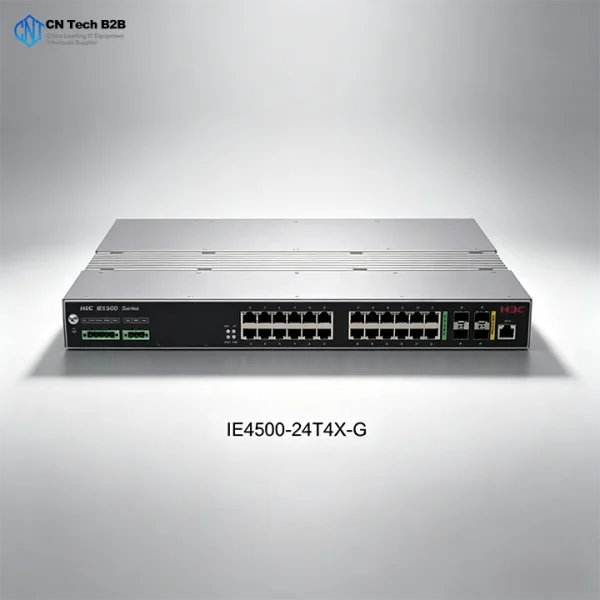

| 9801A7QS | LS-IE4500-24T4X-G-L3 | H3C IE4500-24T4X-G L3 Industrial Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*100M/1G/10G BASE-X SFP Plus Ports, 100-240VAC or 110-220VDC, Redundant Inputs | 1 |
| 0404A1EE | CAB-Console-1.8m-W3 | Console Cable, 1.8m,RJ45P,UL2725(3C28AWG),USB AP | 1 |
| 0404A2BL | CAB-AC-1.8m-CHN-51 | AC Power cord,1.8m,3*0.75mm^2,Black,GB1002P(3P)STM250V10A,227 IEC 53(RVV),3*EN(18-6mm)Y,CCC | 1 |
| H3C IE4500-28S-G #1 | |||

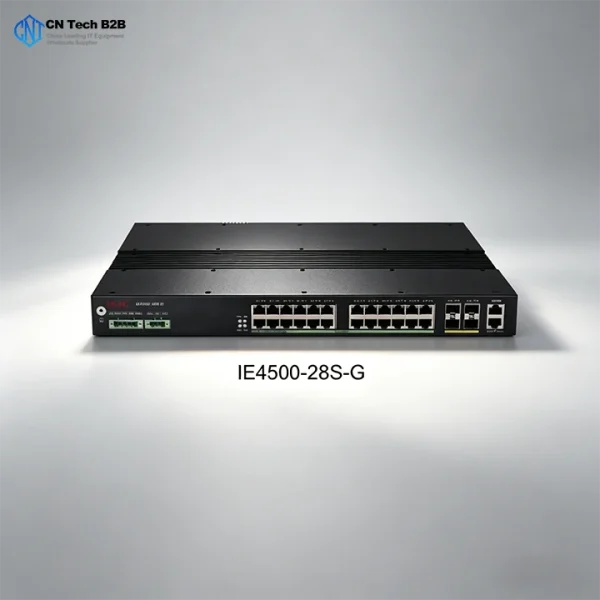

| 9801A5JK | LS-IE4500-28S-G | H3C IE4500-28S-G Industrial Ethernet Switch with 24*10/1000BASE-T Ports, 4*100M/1G/10G BASE-X SFP Plus Ports, 100-240VAC, Redundant Inputs | 1 |
| 0231A962 | SFP-GE-LX-SM1310-D | 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC) | 2 |
| 0404A2BL | CAB-AC-1.8m-CHN-51 | AC Power cord,1.8m,3*0.75mm^2,Black,GB1002P(3P)STM250V10A,227 IEC 53(RVV),3*EN(18-6mm)Y,CCC | 2 |
| H3C IE4500-28F-G #1 | |||

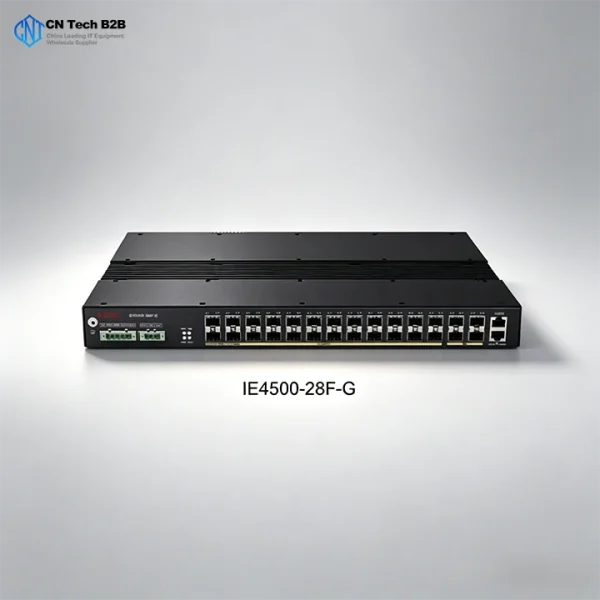

| 9801A5JL | LS-IE4500-28F-G | H3C IE4500-28F-G Industrial Ethernet Switch with 24*100/1000 BASE-X SFP Ports, 4*100M/1G/10G BASE-X SFP Plus Ports, 100-240VAC, Redundant Inputs | 1 |
| 0231A1RQ | SFP-XG-LX-SM1310-D | SFP+ Module(1310nm,10km,LC) | 2 |
| 0404A2BL | CAB-AC-1.8m-CHN-51 | AC Power cord,1.8m,3*0.75mm^2,Black,GB1002P(3P)STM250V10A,227 IEC 53(RVV),3*EN(18-6mm)Y,CCC | 2 |
H3C IE4500-G Series Industrial Ethernet Switch Full Technical Specifications
| Specification Category | Full Official Details |
|---|---|
| Product Model Range | H3C IE4500-24T4X-G, IE4500-28S-G, IE4500-28F-G, IE4500-8T16P4X-G, IE4500-8T8P4X-G |
| Hardware Base Performance | Layer 3 managed industrial switch, 560Gbps switching capacity, 196Mpps full line-rate packet forwarding |
| Port Interface Layout | 24/28 Gigabit RJ45/SFP combo ports, 4× 10G SFP+ high-speed uplink ports; optional PoE+ models available |
| Industrial Environment Durability | Ultra-wide operating temperature: -40°C to +85°C, IP40 dust-proof casing, fanless silent natural cooling, special three-proof PCB coating, anti-vibration, anti-surge, anti-electromagnetic interference |
| Power Supply Design | Dual redundant hot-swappable power inputs; supports AC 100-240V, DC 110V/220V, wide-range DC 24-48V; real-time power failure alarm relay output |
| Physical Installation & Size | Standard 19-inch rackmount design, dimensions: 440 × 320 × 44mm, net weight approx 5.2kg |
| Stacking & Redundancy Protocols | IRF2 intelligent resilient virtual stacking (up to 4 devices), ERPS, RRPP, MRP, STP/RSTP/MSTP ring & tree redundancy, <10ms network failover recovery |
| L2/L3 Routing Features | Full Layer 2 switching; static routing, RIP, OSPFv2/v3, BGP, IPv4/IPv6 dual stack complete routing capability |
| Industrial Field Bus Protocols | Native transparent support for Profinet, Ethernet/IP, Modbus TCP/RTU, CC-Link, EtherCAT mainstream industrial automation protocols |
| Precision Time Synchronization | IEEE 1588v2 PTP precision clock synchronization, SyncE frequency synchronization for industrial timing sensitive systems |
| Advanced Network Control | BFD fast fault detection, VLAN (4K), QoS traffic priority scheduling, congestion control, flow control, port mirroring |
| Security & Access Control | 802.1X port authentication, MAC authentication, ACL filtering, IP/MAC/Port binding, ARP anti-spoofing, anti-DDoS, TPM hardware security, EAD endpoint admission system |
| Multicast & Video Optimization | IGMP v1/v2/v3 Snooping, IGMP Querier, MVR multicast VLAN registration, ideal for industrial video surveillance and large data stream transmission |
| Network Management Methods | Local CLI console, Web GUI, Telnet, SSH v2.0, SNMP v1/v2c/v3, RMON; compatible with H3C iMC, SmartMC, BIMS, TR069 remote centralized management |
| Software & Open Compatibility | H3C Comware industrial OS, OpenFlow 1.3 SDN support, dual firmware image backup for zero failure boot protection |
| Certified Application Scenarios | Factory automation, intelligent manufacturing, rail transit, tunnel & transportation systems, power substations, mining sites, outdoor smart cabinet, high-temperature workshop, harsh complex industrial network deployment |
