1. Rugged Industrial Hardware Construction & Extreme Temperature Environmental Compatibility

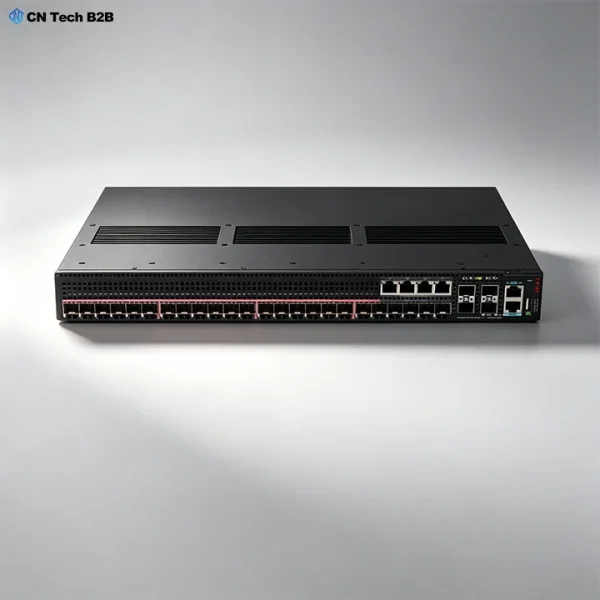

This 1U rack-mounted industrial switch (440×260×43.6mm, max weight ≤6.6Kg) eliminates cooling fan entirely and adopts integrated heat sink plus thermal conductive glue passive heat dissipation loop, avoiding fan breakdown failure under fluctuating industrial ambient temperatures ranging from -40℃ up to 70℃ operating range and -40℃~85℃ storage temperature. The main PCB board is coated with three-proof conformal coating against moisture, mould and dust, complying with IP40 cabinet enclosure protection level and built-in lightning & surge suppression circuit to withstand outdoor thunderstorm interference for field deployment.

• Single wide-range power input supports 85~264VAC alternating current or 192~288VDC direct current, matching industrial site unstable power grid environment
• Static power consumption ≤24W, typical power draw ≤27W while total PoE power budget capped at 370W under full-load 478W consumption
• Equipped with standard RJ45 Console debugging port, 1×USB maintenance port for local firmware upgrade and offline configuration backup

2. AI Intelligent PoE Management & Hybrid Fiber-Copper 2000m Ultra-long Power Feeding

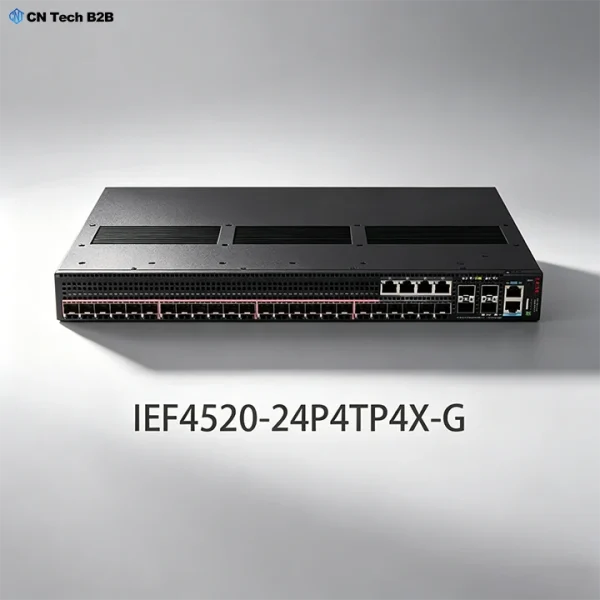

Different from conventional short-range PoE switches limited within 100-meter transmission, IEF4520-24P4TP4X-G breaks distance restriction via hybrid optical-electrical composite cable to realize maximum 2000m remote power supply for industrial AP, field IP cameras and subordinate PoE switches through cascading topology. Its configurable mixed port layout contains 20×Gigabit PoE+ optical-electrical combo ports (IEEE802.3af/at, max 30W per port) plus 4 flexible combo interfaces switching between PoE+ copper or PoE++ 100W optical ports compliant with IEEE802.3bt standard, alongside 4×1G/10G SFP+ high-speed uplink slots for backbone interconnection{insert\_element\_0\_}.

• Embedded AI PoE algorithm performs real-time PD load adaptive adjustment, automatic short/open-circuit power cut protection to prevent internal hardware burnout
• Auto power cycling mechanism restores power supply after scheduled downtime when powered devices suspend operation due to accidental faults, minimizing field maintenance workload

3. Full-stack Layer 2/3 Routing Protocol + Cross-industry Fieldbus & Power Standard Compatibility

The switch integrates complete dual-stack IPv4 & IPv6 routing engine to support static routing, dynamic RIP/RIPng, OSPF and VRRP protocol with millisecond-grade BFD link fault detection for rapid route convergence during network outages. For industrial vertical industries, it natively forwards mainstream power automation protocols including IEC61850-3, SV/GOOSE, IEC103 and IEC104 to fit substation communication networking, meanwhile realizing transparent transmission and host monitoring access of Modbus, Profinet, EtherNet/IP and CC-Link industrial bus for PLC, inverter and on-site controller centralized management.

• Multi-type industrial redundant ring network: MRP ring (≤10ms failover), ERPS/G.8032 & RRPP self-healing ring (≤20ms recovery), isolating ring ports as independent broadcast domains to eliminate industrial network broadcast storm
• Comprehensive multicast solution: IGMPv1/v2/v3 Snooping, MLD Snooping for IPv6 and PIM-SM/DM/SSM multicast routing adapting real-time industrial video streaming and VoIP voice service

4. Full-layer Industrial Cybersecurity Protection & Hardware-accelerated MACsec Encryption

Equipped with multi-dimensional security defense architecture targeting frequent industrial network ARP spoofing, DDoS and illegal terminal access risks, the device implements ARP Detection to validate IP/MAC binding via DHCP Snooping, 802.1X authentication or static binding entries plus ARP rate limiting to avoid CPU resource exhaustion from abnormal ARP flood traffic. Unique hardware-based full-port MACsec 256-bit AES encryption secures all ingress/egress frame with integrity check and source verification via MKA key negotiation, cooperating with 802.1X access control to block unauthorized device data interception and tampering.

• EAD terminal access control links endpoint anti-virus patch management with network access permission, realizing whole-network proactive security defense for unmanned industrial production lines
• Exclusive MOD (Mirror On Drop) loss mirroring captures internal packet dropping timestamp, root cause and packet features to remote collector for hidden forwarding fault troubleshooting

5. IRF2 Virtual Stack, SDN OpenFlow & Diversified Zero-configuration O&M System

Support H3C proprietary IRF2 intelligent resilient architecture to virtual multiple physical IEF4520 switches into one unified logical device, enabling cross-device link aggregation, master-slave automatic failover and hot-plug member equipment without existing service interruption, effectively reducing multi-switch deployment and configuration cost in large-scale industrial park networking. It fully supports OpenFlow1.3 SDN standard with switch mode toggle between traditional Ethernet and OpenFlow, compatible with H3C SNA prevision network architecture for automated network layout, policy delivery and one-click faulty device replacement.

• Zero-touch provision via BIMS and TR069 protocols for automatic remote config/ firmware download, drastically cutting on-site startup configuration labor for scattered industrial field sites
• Multi-channel management access: CLI, SSH2.0 encrypted Telnet, WEB GUI, SNMPv1/v2/v3 and H3C iMC/SmartMC centralized cloud management
• Dying Gasp power-off alarm sends pre-shutdown fault notification to upper NMS when dual power source fails unexpectedly; EEE idle port auto-sleep meets EU RoHS green energy-saving specifications

6. Verified Industrial Vertical Application Scenarios for Harsh Complex Environments

Validated and widely deployed across three core high-temperature complex industrial sectors where regular commercial switches fail to sustain continuous running: first, power grid substation secondary communication network under high-temp and electromagnetic interference substation cabinet; second, smart manufacturing workshop production line automation networking with oil mist, dust and wide temperature fluctuation; third, outdoor municipal intelligent surveillance and rail transit roadside cabinet all-optical PoE networking with lightning and humidity threats. The 2000m long-distance PoE feature solves wiring difficulty for dispersed field cameras and industrial IoT terminals without additional onsite power distribution cabinet construction.
