H3C S5130S-28P-EI-R 28-Port Gigabit Managed Switch | 24x RJ45 + 4x SFP, Layer 2+, IRF2, Enterprise Grade
$147.00
The H3C S5130S-28P-EI-R is a 28-port Gigabit Layer 2+ managed switch with 24 copper + 4 fiber ports, IRF2 stacking, and enterprise-grade features like 4K VLAN, ACLs, and OAM — ideal for scalable, secure campus and surveillance network deployments.

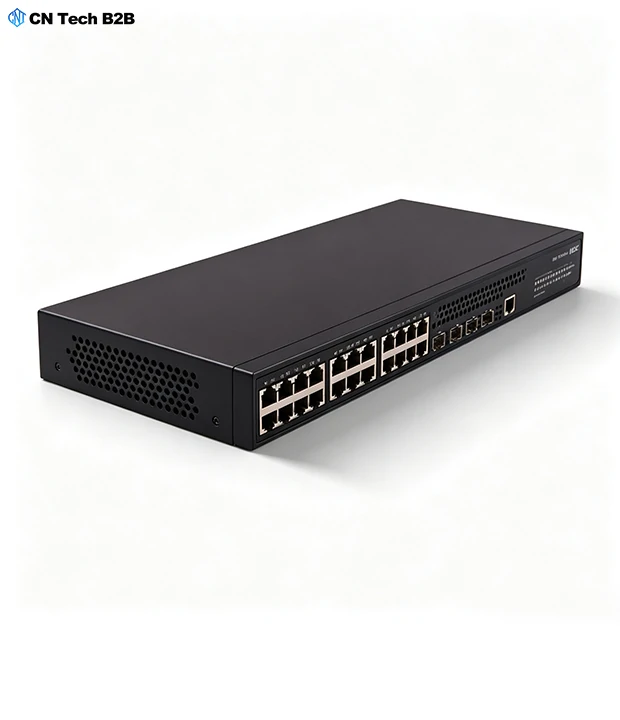

Highlights the compact 1U rack-mountable metal chassis with front-to-back ventilation, designed for silent, reliable deployment in enterprise closets and data centers while supporting flexible mounting options for space-constrained environments.
Showcases comprehensive Layer 2+ features including 4K VLAN, LACP, port mirroring, ACLs, IPv6, and Ethernet OAM (802.3ah/802.1ag), enabling advanced traffic control, security, and service assurance for mission-critical business networks.
H3C S5130S-28P-EI-R
Enhanced Gigabit Access Switch — 24× 10/100/1000BASE-T Ports + 4× 1000BASE-X SFP Ports (AC)
1. Product Overview
The H3C S5130S-28P-EI-R is a simple, cost-effective and easy-to-deploy access switching solution with enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, and flexible management. It meets the requirements for SME access, enterprise desktop access and high-density campus access.
2. Hardware Specifications
| Feature | H3C S5130S-28P-EI-R |
|---|---|
| Product Type | Layer 2+ Managed Gigabit Ethernet Switch |
| Product Description | 24× 10/100/1000BASE-T Ports and 4× 1000BASE-X SFP Ports, (AC) |
| Port Switching Capacity | 56Gbps |
| Forwarding Capacity | 42Mpps |
| Box Switching Capacity | 336Gbps |
| CPU | 1 Core, 800MHz |
| Flash / SDRAM | 256MB / 512MB |
| Latency (64byte/µs) | GE: < 5µs |
| 10/100/1000 Base-T Port | 24 |
| SFP Port | 4 |
| Maximum Stacking Bandwidth | 16Gbps |
| Maximum Stacking Num | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption | MIN: AC: 9W | MAX: AC: 23W |
| Fan NUM | Fanless |
| MTBF (Year) | 150.86 |
| MTTR (Hour) | 1 |
| Dimensions (W × D × H) | 440 × 260 × 43.6 mm |
| Weight | ≤ 4kg |
| Operating Temperature | -5℃ ~ 50℃ (normal operating temperature) -5℃ ~ 45℃ (When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃ (When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity | 5% RH to 95% RH, non-condensing |
3. Performance Specifications — Entries
| Entry | H3C S5130S-28P-EI-R |
|---|---|
| MAC address entries | 16K |
| VLAN table | 4096 (VLAN IDs 0 and 4095 are reserved) |
| Active VLAN | 4094 |
| VLAN interface | 32 |
| IPv4 routing entries | 1024 |
| IPv4 ARP entries | 1024 |
| IPv4 ACL entries | 512 |
| IPv4 multicast L2 entries | 1000 |
| IPv6 unicast routing entries | 240 |
| QOS forward queues | 8 |
| IPv6 ACL entries | 512 |
| IPv6 ND entries | 240 |
| Jumbo frame length | 10240 |
| MAX num in one link group | 8 |
| Link group num | 124 |
* Special versions support 64 VLAN interfaces.
4. Software Specifications
4.1 VLAN
- VLAN ID range 0 to 4095 (Total 4096, 0 and 4095 are reserved for the system)
- Access / Trunk / Hybrid VLAN
- Port-based VLAN, MAC-based VLAN, IP subnet-based VLAN, protocol-based VLAN
- IEEE 802.1P (CoS priority)
- Private VLAN, Voice VLAN, Guest VLAN
- MVRP (Multiple VLAN Registration Protocol) (compliance with GVRP)
- QinQ (802.1Q-in-802.1Q), Vlan mapping
4.2 MAC & Security
- Static / Dynamic / Blackhole / Multiport unicast MAC
- MAC automatic learning and aging, port-based / VLAN-based MAC learning limit
- MAC filter, Port isolation, Loop detection
- STP (Spanning Tree Protocol), RSTP, MSTP, PVST (compatible with PVST+/RPVST+)
- BPDU / root / loop / TC-BPDU / PVST BPDU guard, Role / TC-BPDU transmission restriction
- LLDP (Link Layer Discovery Protocol) and LLDP-MED
4.3 Link Aggregation
- Ethernet link aggregation: static aggregation, dynamic aggregation, GE/10GE port aggregation
- LACP (Link Aggregation Control Protocol)
- S-MLAG (Simple multichassis link aggregation)
4.4 IP Services
- ARP snooping / fast-reply / direct route advertisement / ping, ARP attack detection, ARP source suppression
- DHCP (Server / relay agent / client / snooping)
- DNS, UDP helper, ND, ND snooping / proxy / direct route advertisement / ping
- DHCPv6 (Server / relay agent / client / snooping / guard), HTTP redirect
4.5 Routing
- Static routing, RIP, OSPF
- IPv6 static routing, RIPng, OSPFv3
- IPv4 / IPv6 dual stack
- Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6
4.6 Multicast
- PIM snooping, IGMP Snooping, IGMP Authentication, Multicast VLAN
- IPv6 PIM snooping, MLD Snooping, IPv6 Multicast VLAN
4.7 ACL / QoS
- Basic and advanced ACLs for IPv4 / IPv6
- 802.1p / DSCP QoS prioritization, SP / WRR queue scheduling
- Storm suppression based on PPS / BPS / port bandwidth percentage
- Broadcast / Multicast / Unknown unicast traffic suppression
4.8 Security
- 802.1X Port-based network access control, Portal authentication, MAC authentication, Web authentication, Triple authentication
- Port security, SSH1.x and SSH2.0, SSL, HTTPs, PKI, CoPP (Control Plane Protection)
- Attack detection and prevention: CPU / ARP / ICMP / TCP attack prevention
- IPSG (IP Source Guard), IPv6 RA Guard, MFF (MAC-Forced Forwarding), SAVI
- FIPS, Hierarchical user management and password protection, EAD (Endpoint Admission Defense)
4.9 Management
- NTP, SNMPv1 / SNMPv2c / SNMPv3, RMON (groups 1, 2, 3 and 9)
- NETCONF / YANG, EAA (Embedded Automation Architecture)
- Port mirroring SPAN / RSPAN, Flow mirroring, sFlow
- Information center, VCF (Virtual Converged Framework), CWMP (TR-069)
- System logs, Debugging information output
- Configuration through CLI, Web UI, Telnet, and console port
- Zero Touch Provisioning, Loading and upgrading through XModem / FTP / TFTP / SFTP / USB
- iMC network management system, SmartMC (embedded Smart Graphical Management Center) Member
4.10 Stacking
- IRF2 (Intelligent Resilient Framework 2)
- Distributed device management, Distributed link aggregation, Distributed resilient routing
- Stacking through SFP
5. Standards and Protocols Compliance
5.1 IEEE
- 802.1x, 802.1ab, 802.1ak, 802.1ax, 802.1d, 802.1p, 802.1q, 802.1s, 802.1ag, 802.1v, 802.1w, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3be, 802.3u, 802.3ab, 802.3z, 802.3ae
5.2 IETF (Selected RFCs)
- RFC 768 (UDP), RFC 791 (IP), RFC 792 (ICMP), RFC 793 (TCP), RFC 826 (ARP), RFC 951 (BOOTP), RFC 1122 (Host Requirements), RFC 1772 (BGP-4), RFC 2131 (DHCP), RFC 2132 (DHCP Options), RFC 2273 (SNMPv3 Applications), RFC 2328 (OSPFv2), RFC 2401/2402/2460 (IPsec / IPv6), RFC 2576/2579/2580 (SNMPv3), RFC 3768 (VRRP), RFC 4022 (TCP MIB), RFC 4113 (UDP MIB), RFC 4213 (IPv6 Transition), RFC 4251-4254 (SSH), RFC 4291/4292/4293 (IPv6 Addressing / MIB), RFC 4419 (SSH Key Exchange), RFC 4443 (ICMPv6), RFC 4541 (IGMP & MLD Snooping), RFC 4552 (OSPFv3 Auth), RFC 4750 (OSPFv2 MIB), RFC 4861/4862 (IPv6 ND / SLAAC), RFC 4940 (OSPF), RFC 5095 (OSPF Deprecation), RFC 5381 (NETCONF over SOAP), RFC 6241 (NETCONF), RFC 7950 (YANG)
5.3 ITU
- ITU-T Y.1731, ITU-T Rec G.8032/Y.1344 Mar. 2010
6. Certification
- FCC, CE
- UL, CAN/CSA C22.2 No 60950-1
- IEC 60950-1, EN 60950-1, AS/NZS 60950-1
- FDA 21 CFR Subchapter J, GB 4943.1
