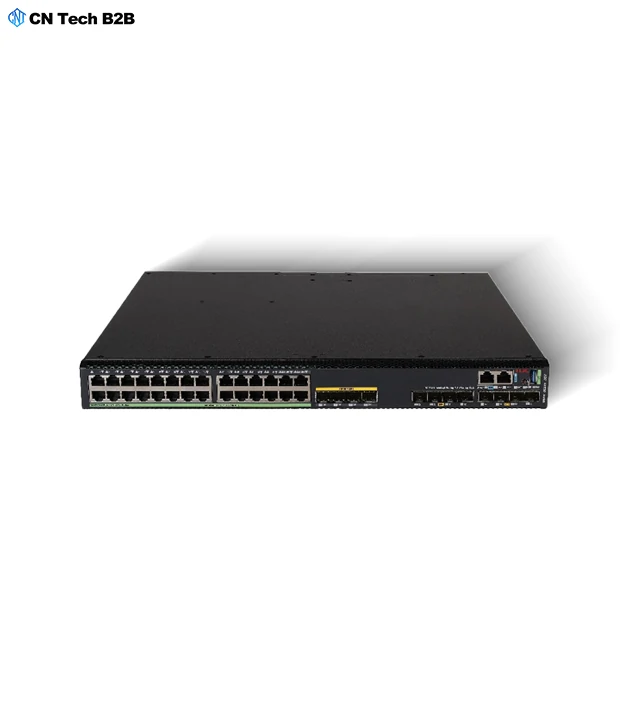

H3C S5590-28P8XC-EI 28-Port 10G Layer 3 Switch | 8x 40G QSFP+, Enterprise Aggregation
$1,559.00
The H3C S5590-28P8XC-EI is a high-density 10G Layer 3 aggregation switch equipped with 8x 40G QSFP+ uplinks and a 2.56Tbps switching fabric, designed to deliver ultra-low latency and flexible virtualization for demanding enterprise core networks.
Features a versatile high-speed interface matrix with 8x 10G Base-T ports, 12x 10G SFP+ slots, and 8x 40G QSFP+ uplinks to eliminate bandwidth bottlenecks in dense enterprise aggregation layers.
H3C S5590-28P8XC-EI Custom Demo BOM Configuration
| BOM Code | PID | Description | Qty |
|---|---|---|---|
| H3C S5590-28P8XC-EI #1 | |||
| 0235A2VJ | LS-5590-28P8XC-EI | H3C S5590-28P8XC-EI L3 Ethernet Switch with 28*10/100/1000BASE-T PoE+ Ports(Including 4*SFP Combo Ports),8*10G BASE-X SFP Plus Ports and 1*Slot Without Power Supplies Switch | 1 |
| 0231AG9F | LSPM1FANSB-SN | H3C Fan Module (Fan Panel Side Exhaust Airflow) | 2 |
| 0235A0HF | PSR1600-54A-B-SN | H3C PSR1600 1600W AC PoE Power Supply | 2 |
| S5590‑28P8XC‑EI Switch Specifications | |
|---|---|
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 672Mpps |
| Dimensions (W × D × H, mm) | 440×360×44 |
| Weight | ≤7kg |
| Console Port | 1 |
| Management Ethernet Port | 1 × 10/100/1000Base‑T |
| USB Port | 1 |
| 10/100/1000BASE‑T Auto‑Negotiation Ports | 28 |
| 100/1000M SFP Ports | 4 (Combo with 4 Gigabit Electrical Ports) |
| 1/10GE SFP+ Ports | 8 |
| Expansion Slot | 1 |
| PoE Support | PoE+ (802.3at)/PoE (802.3af), Max 30W per port |
| Supported Expansion Modules | 2‑Port 1/10GE SFP+, 4‑Port 1/10GE SFP+, 8‑Port 1/10GE SFP+, 2‑Port 25GE SFP28, 4‑Port 25GE SFP28, 8‑Port Multi‑Rate Electric, 8‑Port 1/2.5/10/25GE SFP28, 2‑Port 40GE QSFP+, 4‑Port 40GE QSFP+, 2‑Port 40/100GE QSFP28, mini‑iMC, Security Scan, Firewall Module |
| Input Voltage | AC:100~240V AC 50/60Hz DC:‑48V ~ ‑60V DC |
| Leakage Current Standard | UL60950‑1 / EN60950‑1 / IEC60950‑1 / GB4943 |
| Operating Temperature | ‑5°C ~ 45°C |
| Operating Humidity (Non‑condensing) | 5% ~ 95% |
