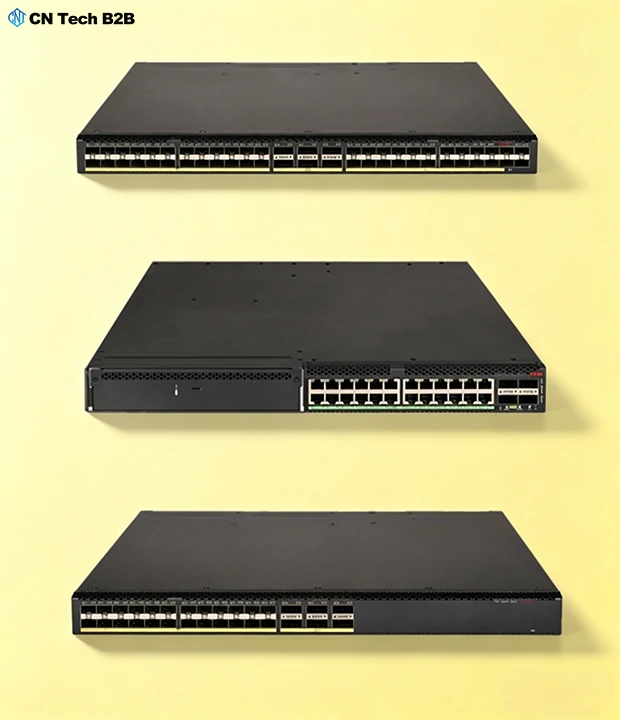

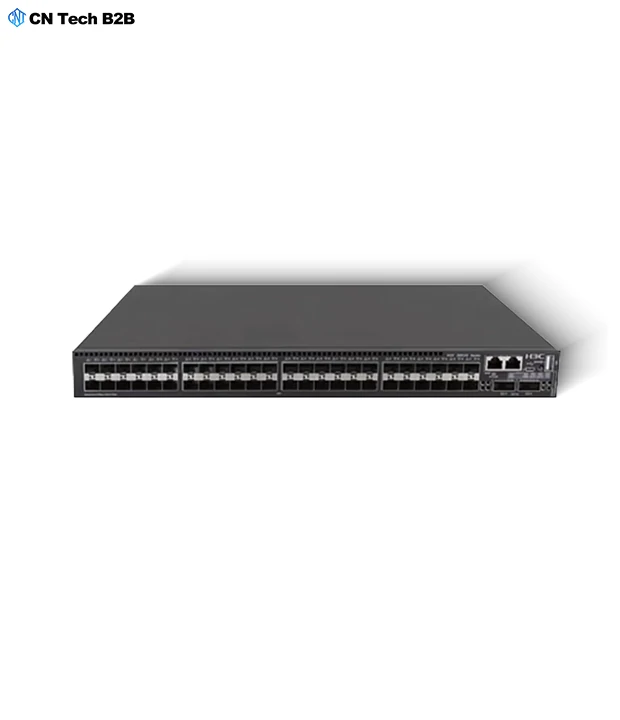

H3C S6520X Series 10G Layer3 Enterprise Switches
Price range: $3,922.04 through $6,325.89
The H3C S6520X Series are high-performance Layer 3 10G enterprise switches supporting 10G/40G/100G ports, IRF2 virtualization, redundant power/fans, PoE+/UPoE and SDN, ideal for campus core, aggregation and data center access deployments.
H3C S6520X Series represents a new generation of intelligent multirate Ethernet switches tailored for medium and large enterprise campuses, office buildings, smart parks and small-to-medium data center network construction. Adopting advanced dedicated switching chip architecture, the series delivers stable wire-speed forwarding, flexible port combination capabilities and complete network service functions, perfectly matching modern high-bandwidth, low-latency and high-reliability network deployment requirements.
H3C S6520X Series switches deliver wire-speed high-density 10GE/40GE/100GE ports and up to 25.6Tbps switching capacity, ideal for enterprise campus core and data center aggregation deployments.
With hot-swappable dual modular power & fan trays and reversible airflow, the S6520X Series ensures hardware-level redundancy and 24/7 reliable operation for mission-critical networks.
oE/UPoE models of the S6520X Series support up to 90W per port, powering wireless APs, IP cameras and IoT devices while providing high-speed 10G uplinks for smart campuses.
Supporting IRF2 virtualization, SDN, rich Layer 3 protocols and ISSU in-service upgrade, the S6520X Series simplifies network management and guarantees non-stop service transmission.
Custom Demo BOM Configuration
| BOM Code | PID | Description | Qty | Unit Price(USD) | Total Price(USD) |
|---|---|---|---|---|---|
| H3C S6520X-54HC-UPWR-EI | |||||

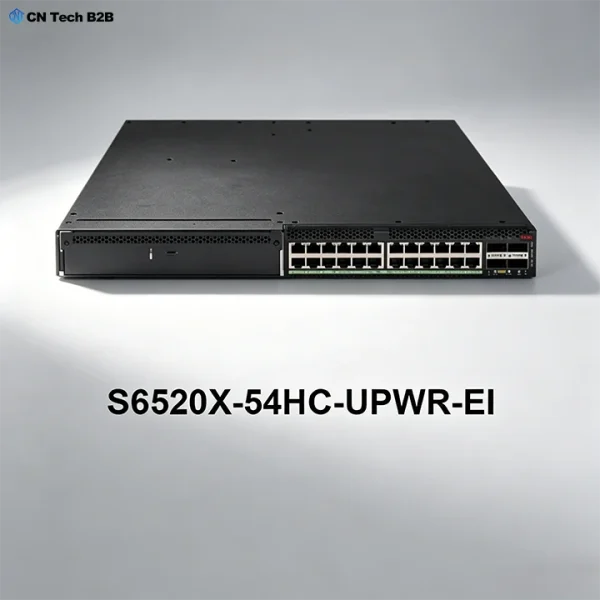

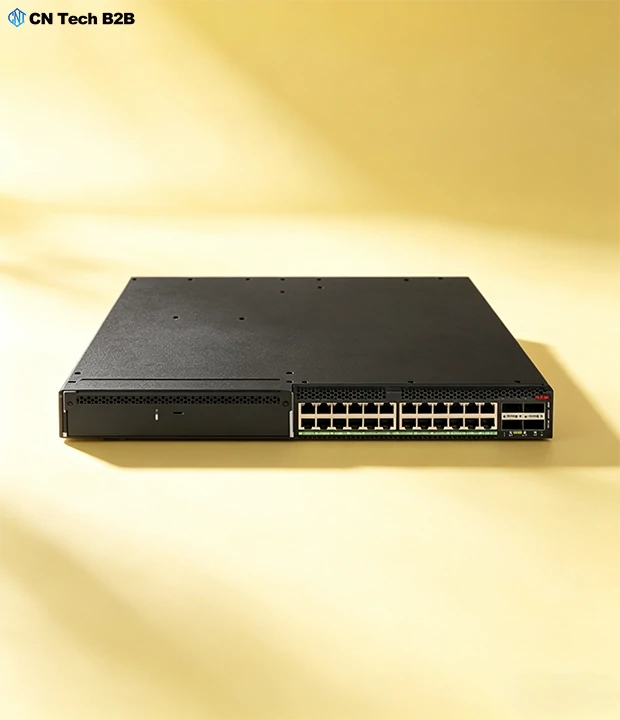

| 0235A2WB | LS-6520X-54HC-UPWR-EI | H3C S6520X-54HC-UPWR-EI L3 Ethernet Switch(24*10GBase-T(PoE++)+4*QSFP28+1E-Slot+1Slot),Without Power Supplies | 1 | 2,874.66 | 2,874.66 |
| 0231A8J8 | LSWM2SP2P | 2-Port 25G SFP28 Interface Module | 1 | 342.22 | 342.22 |
| 0231ABR6 | SFP-25G-LR-SM1310 | 25G SFP28 Optical Transceiver Module (1310nm,10km,LR,SM,LC) | 2 | 456.29 | 912.58 |
| 9803A05Q | PSR1600-54A-B | H3C,PSR1600-54A-B,1600W/AC PoE Power Supply | 2 | 414.81 | 829.62 |
| 0231AMY0 | FAN-40B-1-A-CP | H3C Anti-corrosion Asset-Manageable Fan Module (Fan Panel Side Exhaust Airflow) | 2 | 108.88 | 217.76 |
| S6520X-EI Switch #1 ConfigGroup SubTotal | 5,176.84 | ||||
| H3C S6520X-54HF-EI | |||||

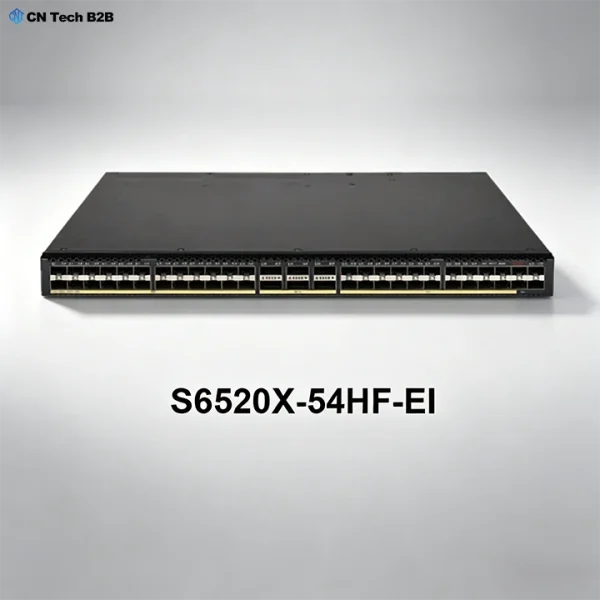

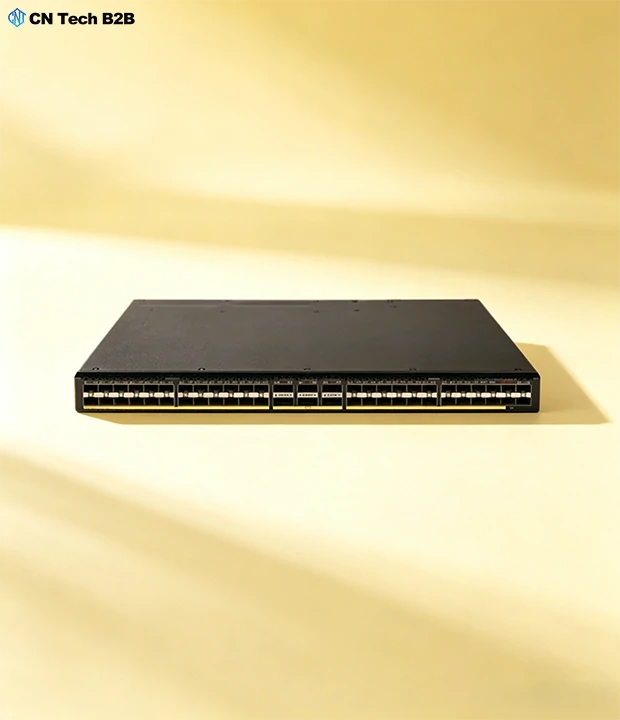

| 0235A2VU | LS-6520X-54HF-EI | H3C S6520X-54HF-EI L3 Ethernet Switch with 48*SFP Plus Ports and 6*QSFP28 Ports,Without Power Supplies | 1 | 4,007.11 | 4,007.11 |
| 0231A4B4 | QSFP-100G-D-AOC-20M | 100G QSFP28 to 100G QSFP28 20m Active Optical Cable | 2 | 725.92 | 1,451.84 |
| 0231A563 | SFP-GE-LX-SM1310-A | 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC) | 2 | 205.33 | 410.66 |
| 0231AG3B | PSR180-12A-F | 180W Asset-Manageable AC Power Supply Module (Power Panel Side Intake Airflow) | 2 | 103.70 | 207.40 |
| 0231AG9E | LSPM1FANSA-SN | H3C Fan Module (Fan Panel Side Intake Airflow) | 3 | 82.96 | 248.88 |
| S6520X-EI Switch #1 ConfigGroup SubTotal | 6,325.89 | ||||
| H3C S6520X-30HF-EI | |||||

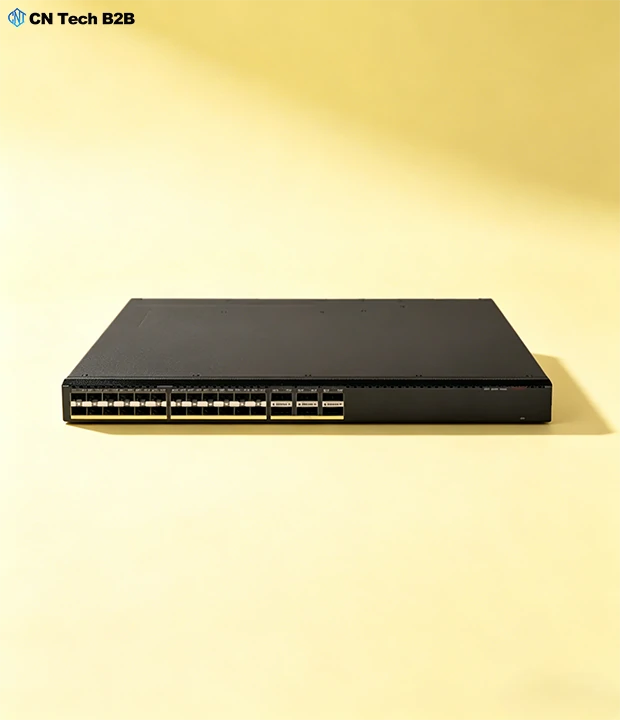

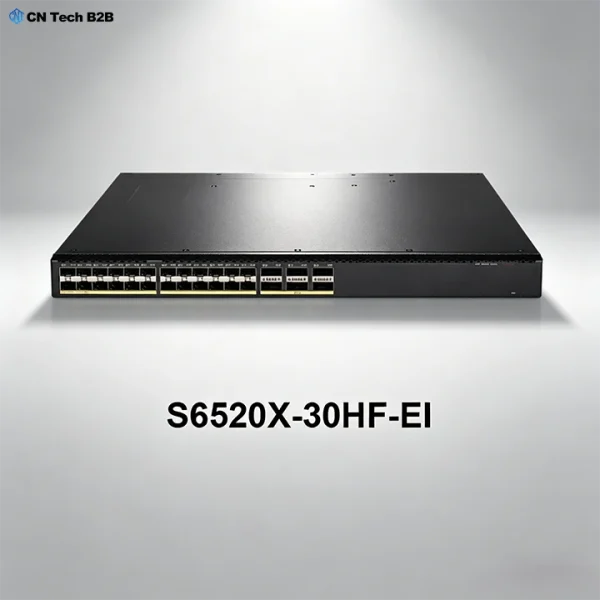

| 0235A2VX | LS-6520X-30HF-EI | H3C S6520X-30HF-EI L3 Ethernet Switch with 24*SFP Plus Ports and 6*QSFP28 Ports,Without Power Supplies | 1 | 3,422.22 | 3,422.22 |
| 0231A4B0 | QSFP-100G-D-CAB-3M | 100G QSFP28 to 100G QSFP28 3m Passive Cable | 2 | 659.55 | 1,319.10 |
| 0231A2L4 | SFP-XG-SX-MM850-E | SFP+ Module(850nm,300m,LC) | 2 | 118.22 | 236.44 |
| 0231AG39 | PSR180-12D-B | 180W Asset-Manageable DC Power Supply | 2 | 176.29 | 352.58 |
| 0231AG9F | LSPM1FANSB-SN | H3C Fan Module (Fan Panel Side Exhaust Airflow) | 3 | 82.96 | 248.88 |
| S6520X-EI Switch #1 ConfigGroup SubTotal | 5,579.22 | ||||
| Total | 17,081.95 | ||||
H3C S6520X-EI Series 10G SDN Layer 3 Switches Technical Specifications
Official specifications of H3C S6520X-EI series high-density 10G/40G/100G Layer 3 SDN switches, including 30QC-EI, 54QC-EI, 30HC-EI, 54HC-EI, 30HF-EI, 54HF-EI, 54HC-UPWR-EI models. Built for enterprise campus core/aggregation & data center access with full virtualization, security & OAM features.
| Specification Item | Official Technical Details |
|---|---|
| Product Models | S6520X-30QC-EI, S6520X-54QC-EI, S6520X-30HC-EI, S6520X-54HC-EI, S6520X-30HF-EI, S6520X-54HF-EI, S6520X-54HC-UPWR-EI |
| Switching Capacity | 2.56Tbps / 25.6Tbps (all models) |
| Packet Forwarding Rate | 720Mpps~1620Mpps (model-dependent: 30QC-EI:720/1260Mpps; 54QC-EI:1080/1620Mpps; 30HC-EI/30HF-EI:1260Mpps; 54HC-EI/54HF-EI/UPWR-EI:1620Mpps) |
| Physical Dimensions | Standard models: 440×360×43.6 mm; UPWR PoE model: 440×460×43.6 mm |
| Fixed Ports | • 24/48×1/10GE SFP+; • 2/6×40/100GE QSFP28; • 2×40GE QSFP+ (QC models); • 24×100M/1G/2.5G/5G/10G Base-T PoE++ (UPWR-EI); • 1×Console, 1×MGMT, 1×USB |
| Expansion Slots | 2× slots (standard models); supports 10G/25G/40G/100G cards, PoE cards, NetStream, FW, iMC, security modules |
| Power Supply | Dual modular hot-swappable; AC 90~264V, DC -36~-72V; 180W/250W/450W/600W/920W/1600W options |
| Fan Modules | Dual/triple modular hot-swappable; front-to-back / back-to-front airflow |
| Power Consumption | Min:29~60W; Max:131~3061W; PoE model up to 2700W PoE output |
| PoE Specification (UPWR-EI) | IEEE 802.3af/at/bt (PoE++); 90W per port; total PoE power up to 2160W/2700W |
| Virtualization Technologies | IRF2 (stack up to 9 units), IRF3.1 (vertical virtualization), M-LAG (DRNI), VxLAN, BGP EVPN |
| Layer 2 Features | 802.1Q VLAN, QinQ, STP/RSTP/MSTP/PVST+, ERPS (G.8032), SmartLink, LLDP, DLDP, Jumbo Frame(10K), LACP |
| Layer 3 Routing | IPv4/IPv6 dual stack; Static, RIP, OSPF, BGP, IS-IS; VRRP/VRRPv3; ECMP, Policy Routing; MPLS, MCE, VPN |
| Data Center Features | PFC, ECN, DCBX, RoCE, VxLAN L2/L3 Gateway, Anycast Gateway, EVPN, ISSU, OAM |
| SDN & Programmability | OpenFlow 1.3, NETCONF, Python, Telemetry, gRPC, SmartMC, Cloud Management |
| Security Features | MACsec, 802.1X, AAA/RADIUS/HWTACACS, ACL, IP-MAC-Port-VLAN Binding, ARP Attack Protection, DoS Defense, CPU Protection, SSL/SSH |
| QoS Control | L2~L4 Traffic Classification, CAR, SP/WRR/WFQ, 802.1p/DSCP Remark, WRED, Traffic Shaping |
| OAM & Monitoring | iNQA, eMDI, Telemetry, NetStream, sFlow, ERSPAN, N:4 Mirroring, BFD(3ms), 1588v2(PTP), Y.1731 |
| Management | CLI, Telnet, SSH, SNMP v1/v2c/v3, iMC, USB, Zero-Configuration(DHCP/TR069), Syslog, NTP |
| Operating Environment | Temperature: -5°C ~ 45°C; Humidity: 5% ~ 95% (non-condensing); 10KV surge protection |
| Typical Applications | Enterprise Campus Core/Aggregation, Data Center TOR Access, Wireless AP Aggregation, IoT Converged Network |
