H3C S6550X-HI Series High-Density Layer 3 Data Center Switches | EVPN VXLAN & Hardware Security Enhanced HI Version

Built on H3C’s advanced high-performance switching ASIC chipset, the S6550X-HI series represents a full-spectrum 1U rack-mountable data center switching portfolio tailored for multi-layer cloud network architecture, covering Top-of-Rack (ToR), aggregation and spine backbone deployment scenarios. Distinguished by the HI enhanced industrial and security edition upgrades, this switch line delivers hardware-accelerated virtualization, deep traffic buffer, redundant hot-swappable power and fan subsystems, and comprehensive carrier-grade reliability to address complex networking challenges of enterprise campus, financial IDC, high-performance computing (HPC) and multi-tenant cloud infrastructure.

1. Complete Model Portfolio & Standard Port Specifications

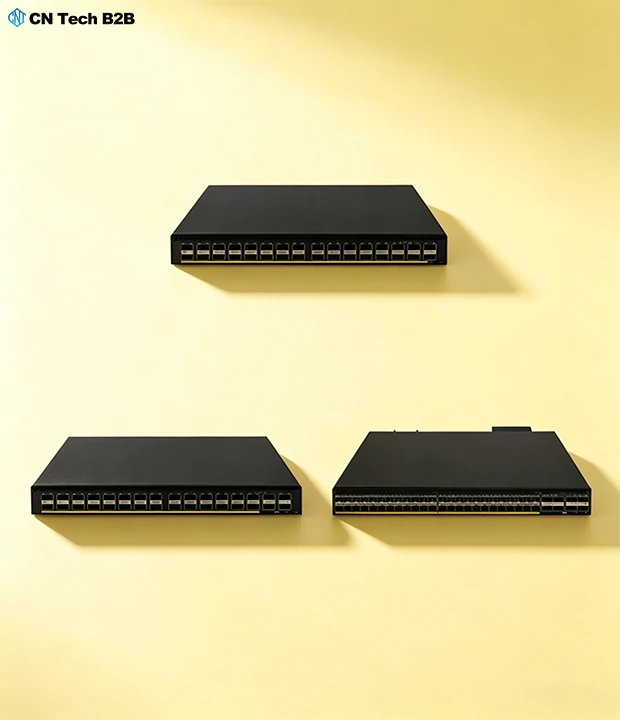

The S6550X-HI family releases three standardized models to match differentiated bandwidth demands of each network tier, all complying with 19-inch 1U rack cabinet deployment standards with unified mechanical dimensions for convenient cabinet unified layout and capacity expansion. All port hardware supports adaptive rate auto-negotiation to reduce module procurement costs for system integrators.

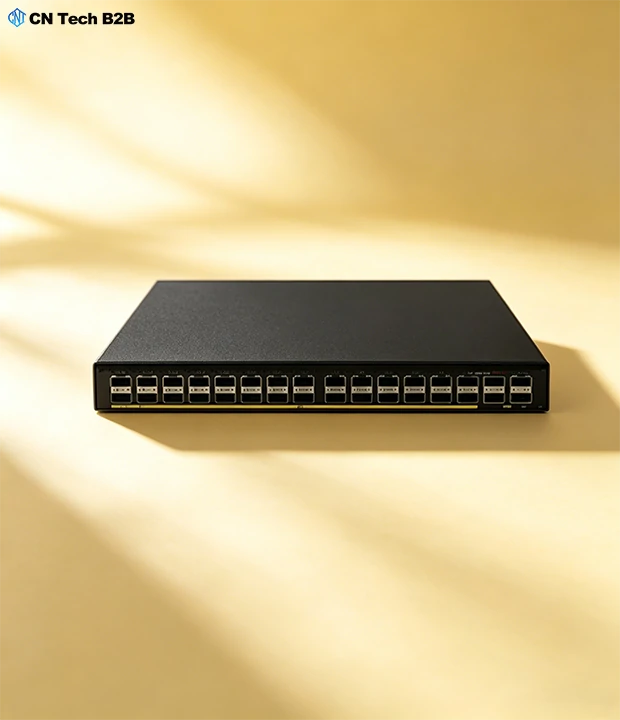

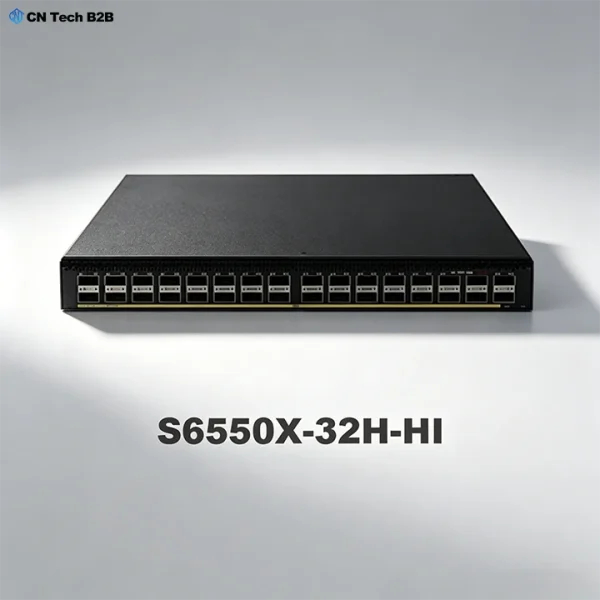

• S6550X-32H-HI (ToR Access Layer): 32×25G SFP28 multi-rate downlink ports, compatible with 10G/25G optical transceivers, built-in expansion support for high-speed inter-switch stacking links, optimized for medium-scale server rack access and compact enterprise data center ToR networking.

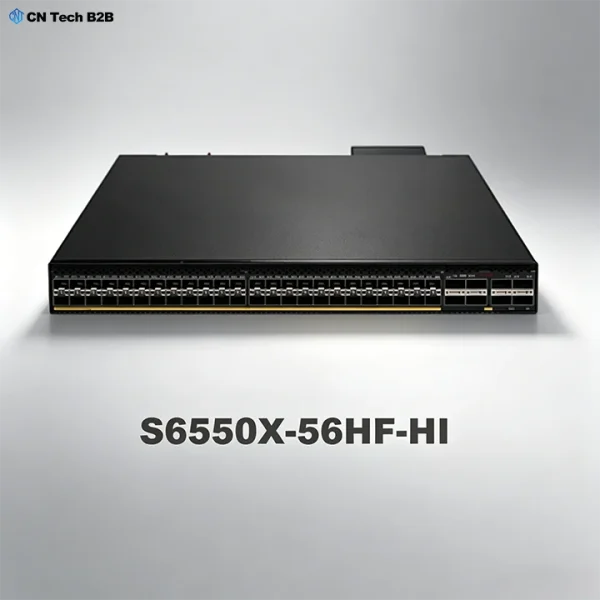

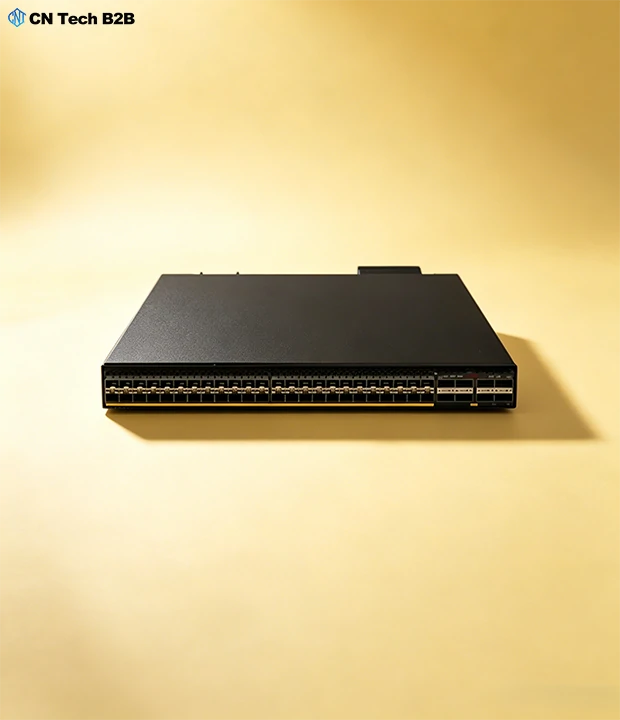

• S6550X-56HF-HI (Aggregation Layer): 48×10G SFP+ multi-rate downlink ports + 8×100G QSFP28 high-speed uplink ports, hybrid port design balances massive 10G server access and 100G cross-aggregation interconnection bandwidth, the preferred model for large enterprise campus aggregation and multi-rack IDC convergence nodes.

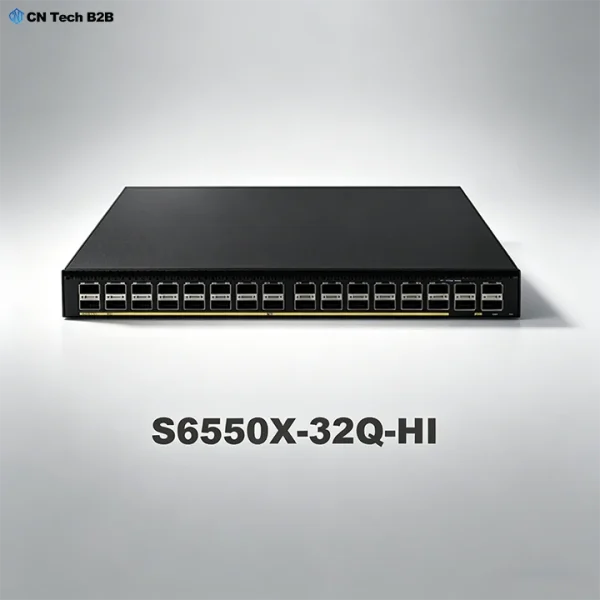

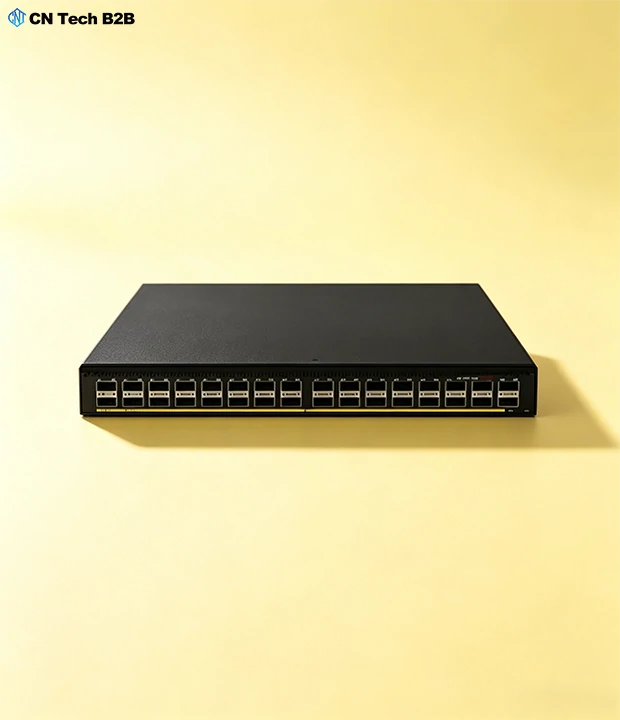

• S6550X-32Q-HI (Spine Backbone Layer): 32×100G QSFP28 full high-density 100G ports, ultra-large switching fabric capacity and microsecond-level low forwarding latency, exclusively deployed as spine core nodes of large cloud data centers, financial private IDC and HPC supercomputing clusters.

2. HI Version Exclusive Enhanced Hardware Architecture & Carrier-Grade Reliability

Compared with standard S6550X base models, the HI variant upgrades core hardware subsystems to strengthen long-term stable operation under 7×24-hour non-stop heavy traffic load, targeting mission-critical industrial and financial data center environments with zero service interruption requirements.

2.1 Redundant Hot-Swappable Power & Fan Cooling System

Every S6550X-HI switch supports dual independent AC/DC power supply modules with N+1 redundant backup, allowing hot plug and replacement without powering down the whole device. The front-to-back airflow isolation cooling design separates service port airflow and power supply airflow, paired with hot-swappable intelligent speed-adjust fans to reduce operating noise and extend service life, supporting continuous operation under 0℃ to 45℃ standard cabinet ambient temperature range.

2.2 Deep Extended Traffic Buffer & Low-Latency Forwarding ASIC

HI edition expands on-chip packet buffer capacity by over 30% versus ordinary models, effectively eliminating instantaneous traffic congestion and packet loss during data burst peaks such as batch big data computing and video stream transmission. The native cut-through forwarding mechanism achieves microsecond-level forwarding delay, meeting ultra-low latency transmission standards of HPC cluster interconnection and high-frequency trading financial networks.

2.3 Hardware-Accelerated Full-Port MACsec Encryption

A core exclusive advantage of HI series switches is built-in hardware AES-256 MACsec encryption engine covering all optical ports. Encryption and decryption processing is offloaded to switching chip hardware without occupying CPU resources, realizing end-to-end data frame confidentiality and integrity verification between adjacent switches, preventing data eavesdropping and tampering in backbone transmission links for financial, government and confidential enterprise network scenarios.

3. Full-Function Data Center Virtualization Protocol Suite

The entire S6550X-HI series provides hardware offloading for mainstream cloud virtualization protocols, avoiding performance degradation caused by software protocol processing and supporting flexible multi-tenant cloud resource isolation and migration.

• EVPN/VXLAN Distributed Virtualization: Hardware-based VXLAN tunnel termination and encapsulation, supporting EVPN control plane to realize cross-device virtual machine migration without gateway changes, supporting over 10000 virtual network segments for large multi-tenant IDC resource isolation.
• SRv6 Segment Routing: Native SRv6 full function support including traffic engineering (TE), source routing and policy-based path steering, simplifying complex backbone network topology and reducing operation and maintenance configuration workload for multi-cloud interconnection architecture.
• TRILL & VXLAN Coexistence Compatibility: Compatible with traditional TRILL data center bridging protocol, realizing smooth upgrade and migration from old-generation layer 2 flat network to modern EVPN cloud virtual network without full network equipment replacement.

4. Complete Dual-Stack IPv4/IPv6 Layer 3 Routing & Intelligent Traffic Scheduling

All S6550X-HI switches integrate full-function hardware routing engine to process IPv4 and IPv6 routes at wire speed, supporting comprehensive dynamic routing protocols for cross-regional campus and multi-cloud interconnection networking.

4.1 Rich Dynamic Routing Protocol Support

Covering static routing, RIP/RIPng, OSPFv2/v3, IS-IS and BGP4/BGP4+ protocols, equipped with millisecond-grade BFD bidirectional fault detection technology to accelerate route convergence within 50ms upon link failure, eliminating long-time service interruption caused by network topology changes.

4.2 Multi-Dimensional QoS & Congestion Scheduling Mechanism

8-level hardware queue scheduling per port supports SP, WRR, DWRR and strict priority mixed scheduling algorithms, combined with WRED intelligent packet discard technology to distinguish business priority of voice, video, big data and office services. Real-time traffic shaping and rate limiting functions effectively restrain abnormal broadcast storm and DDoS traffic impact on core network forwarding performance.

5. Multi-Layer Network Security Defense & Access Control System

Aiming at various attack risks facing modern data center networks, S6550X-HI builds multi-dimensional security defense from access layer to backbone layer, matching compliance requirements of financial industry network security grade protection and enterprise internal information security management specifications.

• Port security function combining 802.1X identity authentication, DHCP Snooping and ARP anti-spoofing, limiting illegal terminal access to server area and isolating attack sources within access layer.
• Hardware-based ACL rule matching supporting L2-L4 multi-layer traffic filtering, realizing precise inter-VLAN access control and illegal data flow interception without reducing port wire-speed forwarding performance.
• Complete DDoS defense suite including SYN flood, ICMP flood and abnormal ARP flood suppression, identifying and cleaning attack traffic locally on the switch chip to avoid core bandwidth occupation by malicious traffic.

6. Diversified Intelligent O&M & Zero-Touch Deployment Capabilities

The S6550X-HI series integrates abundant automated operation and maintenance tools to reduce manual configuration workload for scattered data center equipment deployment and daily fault troubleshooting.

6.1 IRF2 Virtual Stacking Technology

H3C exclusive IRF2 intelligent resilient framework virtualizes multiple physical S6550X-HI switches into a single logical switching device, realizing cross-device link aggregation, master-slave automatic failover and hot plug of stacking members, cutting multi-switch configuration quantity by over 70% and simplifying network topology management of aggregation and spine layers.

6.2 Zero-Touch Provision & Multi-Channel Management Access

Support BIMS, TR069 and DHCP-based zero-touch automatic deployment, new switches automatically download startup configuration and firmware version from central management server without on-site manual debugging. Administrators can access the device via CLI, SSH, encrypted WEB GUI, SNMPv3 and H3C iMC intelligent management platform for unified batch monitoring and fault alarm collection.

6.3 Built-In Network Diagnosis Tools

Integrated lossless packet mirroring, one-click fault location, dying gasp power-off alarm and real-time traffic monitoring functions, recording complete timestamp information of abnormal packet loss and link flapping, greatly shortening the fault positioning cycle of complex data center network failures.

7. Verified Vertical Industry Application Scenarios for S6550X-HI Series

Based on the differentiated port bandwidth and HI enhanced reliability design, the three models of S6550X-HI form a complete end-to-end networking solution, widely recognized and deployed in multiple high-demand vertical industries with strict requirements on network stability and data security:

• Medium & Large Cloud IDC & Multi-Tenant Data Center: S6550X-32H-HI for server rack ToR access, S6550X-56HF-HI for aggregation convergence nodes, S6550X-32Q-HI for spine backbone, EVPN/VXLAN multi-tenant isolation meets resource leasing business demands of cloud service providers.
• Financial Private Data Center & Securities Trading Network: HI version MACsec hardware encryption, low-latency forwarding and redundant power backup satisfy financial industry grade security protection and 7×24-hour uninterrupted trading network operation standards.
• Enterprise Large Campus Network: S6550X-56HF-HI deployed as campus core aggregation switch, compatible with diversified office, monitoring and production service traffic, supporting unified identity authentication and cross-regional IPv4/IPv6 interconnection.
• HPC High-Performance Computing Cluster: S6550X-32Q-HI full 100G spine switch provides ultra-low-latency high-bandwidth interconnection between computing nodes, adapting to large-scale scientific computing, AI training and rendering cluster networking environments.
