HP Z2 Tower G9 Workstation | Expandable ISV-Certified Entry Desktop for CAD, Simulation & Ray Tracing

1. Multi-Generation Intel Core CPU Platform with Tunable Performance Modes

Built on Intel W680 workstation chipset, the HP Z2 Tower G9 supports 12th, 13th and 14th Gen Intel Core processors including K-series unlocked models, delivering powerful multi-threaded computing for rendering and engineering simulation tasks. Users can switch BIOS settings to activate HP High Performance Mode, which boosts multi-thread workflow efficiency by up to 34% without hardware upgrades, while Quiet Mode lowers operational noise for shared office spaces. The thermal architecture eliminates performance throttling, allowing sustained full-load operation during long-hour real-time ray tracing projects.

2. Up to 192GB DDR5 High-Speed Memory & 48TB Total Expandable Storage

This HP tower workstation comes with four DDR5 DIMM slots supporting memory speeds up to 4400MT/s and a maximum capacity of 192GB to handle complex large-size design files and multi-layer media projects. Storage architecture includes three independent M.2 2280 NVMe slots compatible with HP Z Turbo Drive SSDs, plus 2.5-inch and 3.5-inch SATA hard drive bays, enabling combined storage capacity up to 48TB with optional RAID configurations for enhanced data read speed and backup reliability.

3. PCIe Gen5 Graphics Slot Supporting High-End NVIDIA & AMD Professional GPUs

Equipped with a full-length PCIe Gen5 x16 expansion slot, the Z2 Tower G9 accommodates a full lineup of professional graphics cards ranging from entry-level NVIDIA T400 to high-end NVIDIA RTX A5000 and AMD Radeon Pro W7900, leveraging high-bandwidth PCIe 5. transmission to cut down rendering latency for 3D modeling, animation and architectural visualization. Integrated Intel UHD 770 graphics is also available for light daily design tasks to lower initial hardware investment costs.

4. Customizable Flex IO Interface & High-Speed Wired/Wireless Connectivity

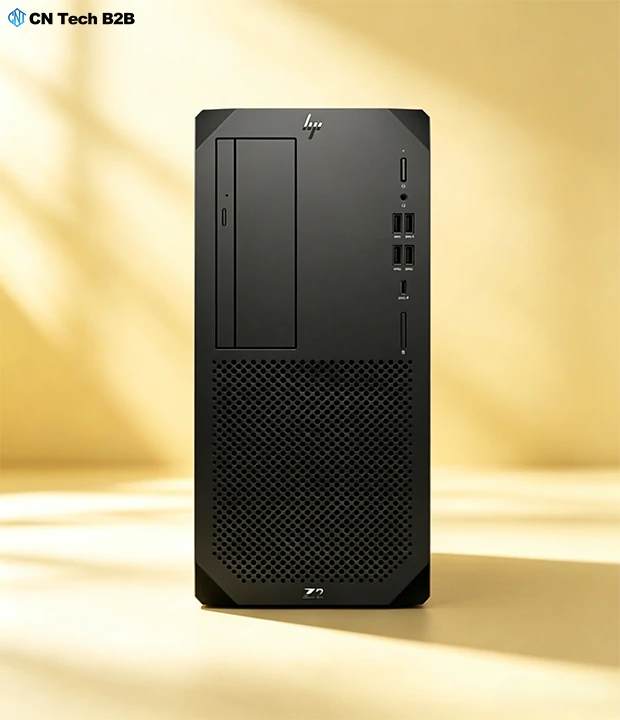

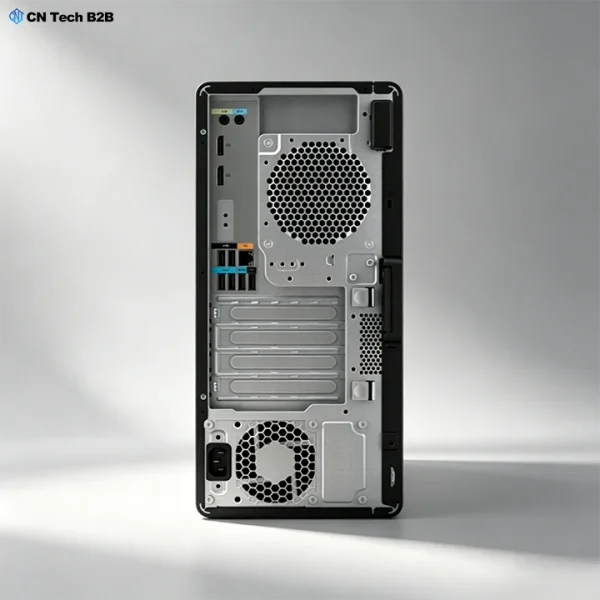

Front and rear panels are pre-fitted with abundant native ports including USB Type-C 20Gbps, multi-version DisplayPort 1.4 and high-speed USB-A interfaces for quick peripheral access. The exclusive Flex IO module allows on-demand configuration of extra HDMI, VGA, serial port or Thunderbolt 4 ports to match unique workflow demands. For enterprise networking, users can select integrated 2.5GbE, optional 10GbE dual-port NIC or fiber SFP+ modules, paired with Wi-Fi 6E / Wi-Fi 7 wireless adapters with Bluetooth 5.4 for stable cross-device connection.

5. Tool-Less Internal Chassis & 360,000 Hours of Professional Reliability Validation

The tower chassis adopts a fully tool-free internal design, removing the need for screwdrivers to swap memory, storage drives and graphics cards, greatly simplifying post-purchase hardware upgrades for long-term business use. Every Z2 Tower G9 unit undergoes 360,000 hours of continuous operational testing and MIL-STD military standard durability checks to resist temperature fluctuation and vibration, delivering consistent stability for 24/7 non-stop design studio and engineering lab deployment.

6. End-to-End HP Wolf Security for Business Hardware-Enforced Threat Defense

HP Wolf Security for Business provides omnidirectional protection covering BIOS, firmware, operating system and browser layers, integrated with HP Sure Start Gen7, BIOSphere Gen6, Sure Run Gen5 and Secure Erase security tools. Built-in hood tamper detection sensors and TPM 2.0 chip prevent unauthorized hardware access and data leakage, ideal for enterprises handling confidential mechanical design drawings, architectural models and proprietary multimedia production files.

7. Complete ISV Certification & Multi-Operating System Support

All hardware configurations of the HP Z2 Tower G9 pass official independent software vendor certification for mainstream professional applications including SolidWorks, AutoCAD, Adobe Creative Suite and simulation software, eliminating crash risks and compatibility failures during critical design output. The workstation supports Windows 11 Pro (HP recommended for business), Ubuntu 22.04 LTS Linux and WSL2 subsystems, offering flexible system choices for mechanical engineers, media creators and software developers.

8. ENERGY STAR Certified Eco-Friendly Design with High-Efficiency Power Supplies

Multiple 80 Plus Gold certified power supply options (350W / 450W / 500W / 700W) minimize power consumption under heavy loads, with the whole machine earning EPEAT Gold registration and ENERGY STAR certification. The chassis integrates recycled ocean-bound plastic on cooling fans and speaker components, paired with fully recyclable pulp packaging and low-halogen circuit boards to lower corporate carbon footprint for sustainable office procurement plans.
